Water-Saving Vertical Strawberry Farm – 50% Less Water Usage with Drip Technology

Customization: Available
Type: Verticle hydroponic system
Application Field: Agriculture

Product Description

Basic Information

Model NO.
FDS
Color
Green; White; Customizable
Level
4-6/Customizable
Material
Steel; Stainless Steel; Aluminium; ABS
LED Lights
High Quality Grow Lights
MOQ
1 Set
Application
Strawberry / Commercial Farm
Specification
4*4 / 4*8 Customizable

Packaging & Delivery

Package Size
100.00cm * 100.00cm * 100.00cm
Gross Weight
1000.000kg

Product Description

FarmDrip S: Strawberry Dedicated Vertical Farming Solution

The FarmDrip S system emerges as a comprehensive solution designed to address the unique challenges of strawberry cultivation. It optimizes irrigation, space, light, and wind exposure, providing a user-friendly system that promotes healthy growth and simplifies day-to-day operations.

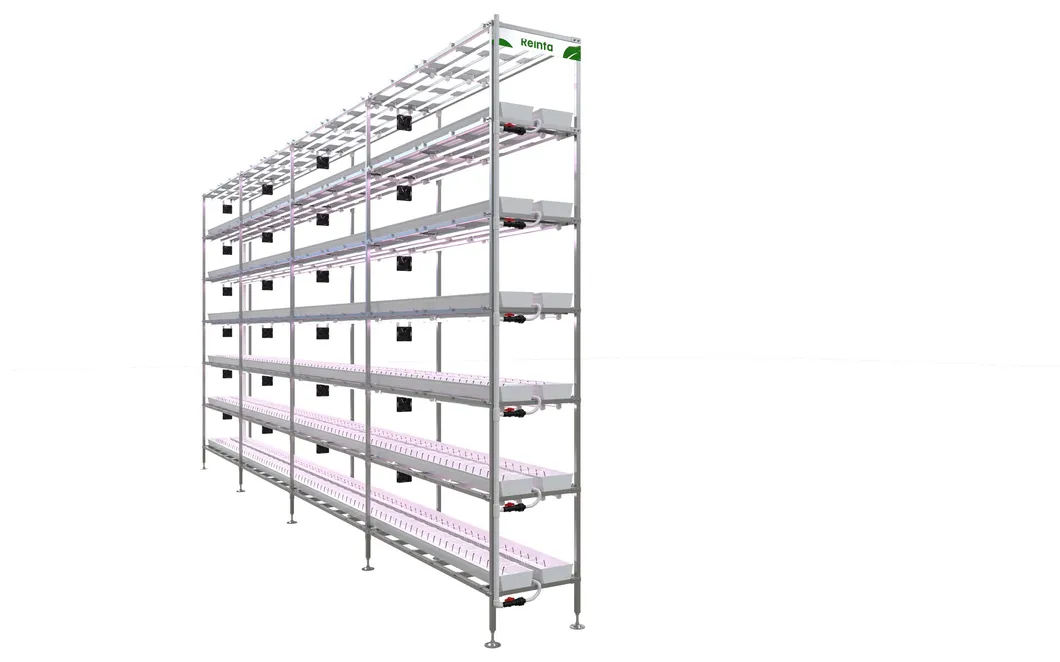

Vertical Strawberry Farm 1

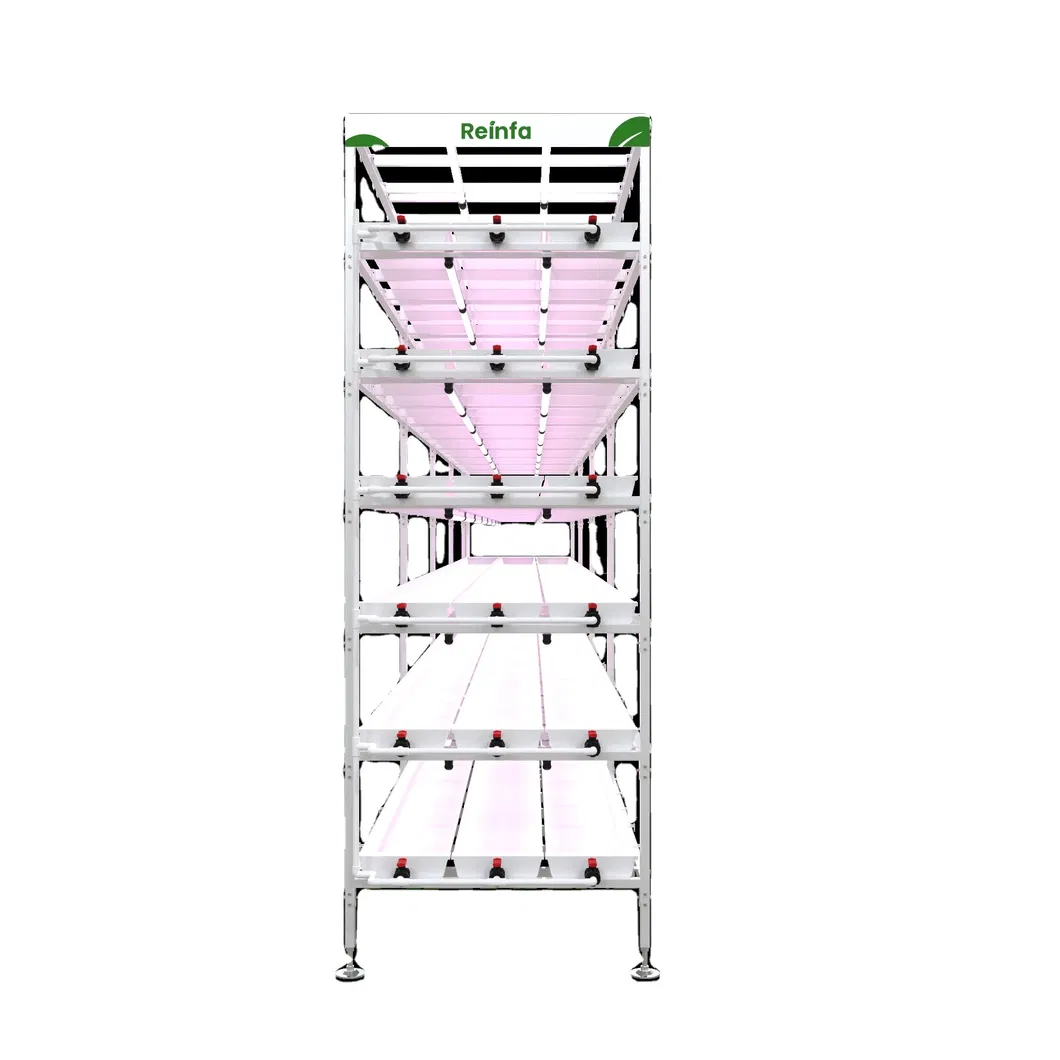

Vertical Strawberry Farm 2
💧 Drip Irrigation Settings
💡 LED Grow Lights
🌀 In-rack Fans
🔳 Professional Grow Rack
Technical Layout

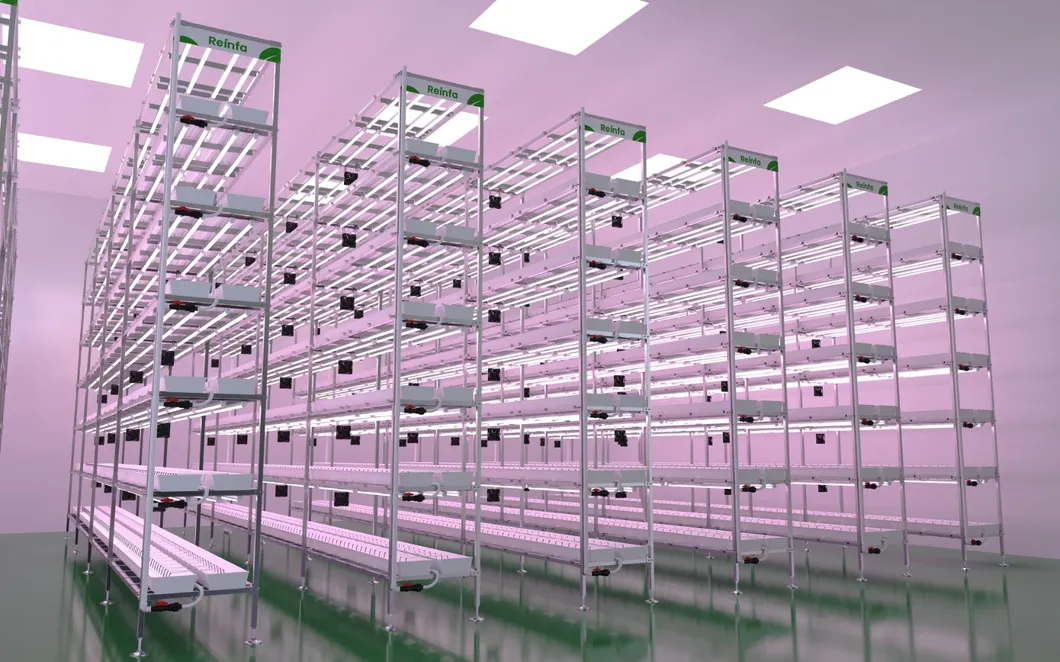

Growth System

Cultivation Challenges & Solutions

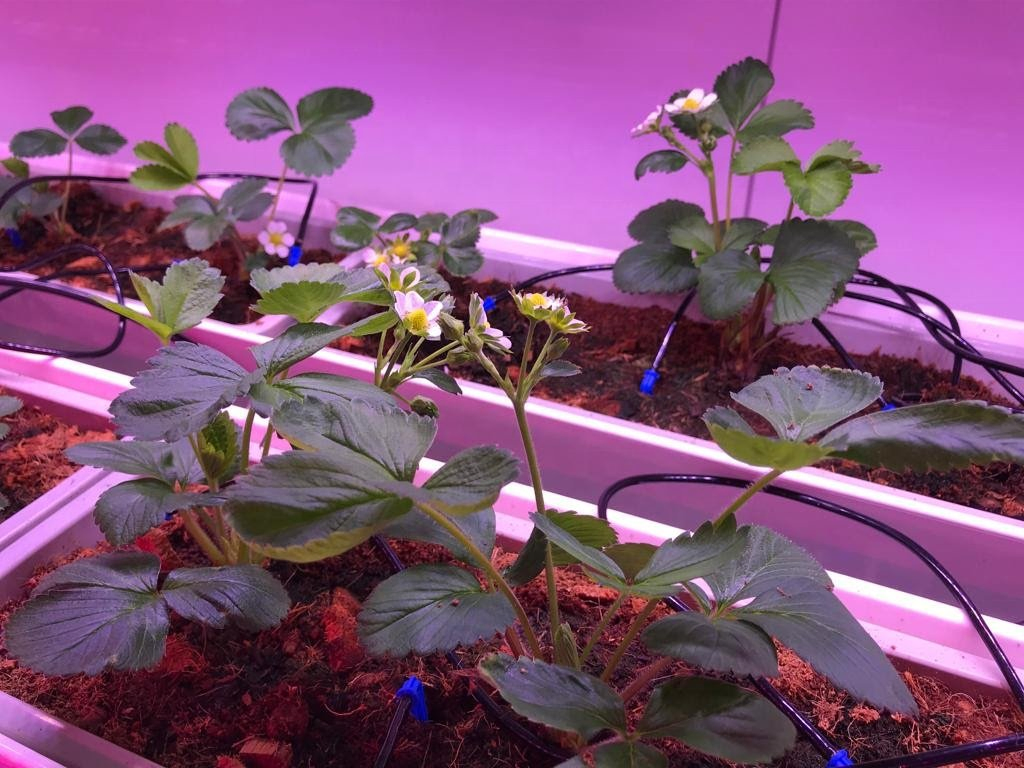

Strawberries thrive in moist conditions but are intolerant to waterlogging. FarmDrip S addresses this with precise drip irrigation technology. The planting pots are designed with efficient ventilation and drainage, preventing root diseases and ensuring a healthy root system.

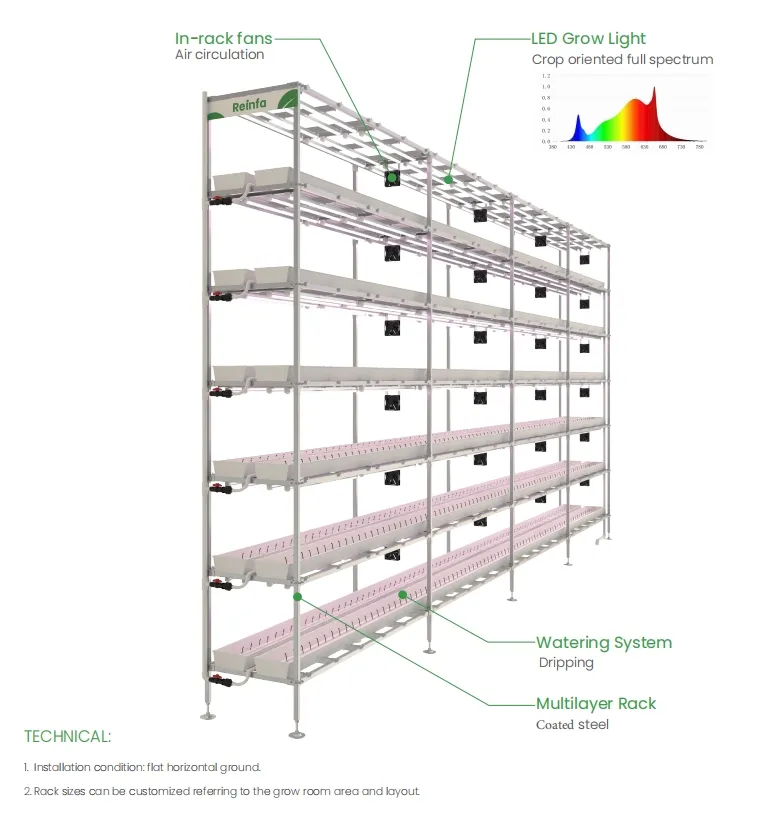

Component Analysis
Indoor Strawberry Operation

Technical Specifications

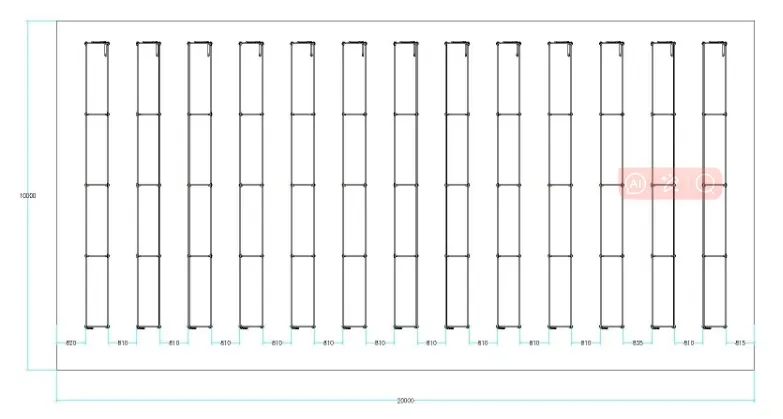

Simulation for a 200m² Grow Room (10m x 20m x 4m)

Data of FarmDrip Strawberry Models
Model Number FDS5-3 FDS5-4 FDS5-5 FDS5-6
Heads of Plantable 300 400 500 600
Net Grow Area 18.27m² 24.36m² 30.45m² 36.54m²
Layers 5 5 5 5
LED Lights Qty 120 160 200 240
Power (Lights) 3600w 4800w 6000w 7200w
Data Chart

Professional Services

We are a professional vertical farming system manufacturer with expertise in indoor agriculture and metalworking. We deliver stable, simple, and affordable solutions to help more people join the indoor farming business.

7+ Years Indoor Farming Expertise
10+ Years Metalworking Mastery

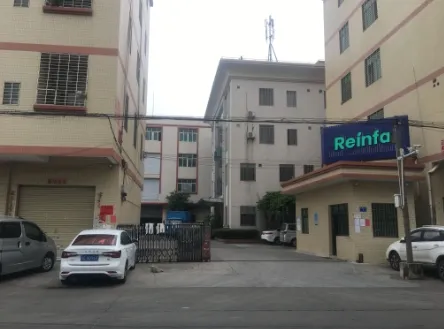

Service Image
Packaging 1
Packaging 2
Packaging 3

FAQ

Q1: What types of crops are best suited for the FarmDrip S system?

The FarmDrip S is specifically dedicated and optimized for strawberry cultivation, though it can support other vertical crops requiring precise water and nutrient management.

Q2: How does the system save water?

By utilizing precise drip irrigation technology, the system delivers water directly to the root zone, significantly reducing evaporation and waste compared to traditional methods.

Q3: Are the grow racks customizable?

Yes, we provide customizable options for the number of levels (typically 4-6) and rack dimensions (4*4, 4*8, etc.) to fit your specific facility size.

Q4: What maintenance is required for the system?

The system is designed to be user-friendly, requiring basic regular checks of the drip emitters, LED power connections, and fan operation to ensure optimal airflow.

Q5: Is manual pollination still necessary for indoor strawberries?

While the system optimizes growth conditions, indoor strawberry cultivation often requires manual pollination or the introduction of pollinators for fruit set.

Q6: What services are provided regarding shipping and quality?

We ensure professional, environmentally friendly packaging and conduct a final inspection before shipment to guarantee product safety and quality.
