Product Description

Overview & Basic Information

Model NO.hydroponics nft system

MaterialFood Grade PVC Material

ApplicationVegetable Planting

AdvantageWater and Fertilizer Saving

Thickness1.8mm or 2.0mm

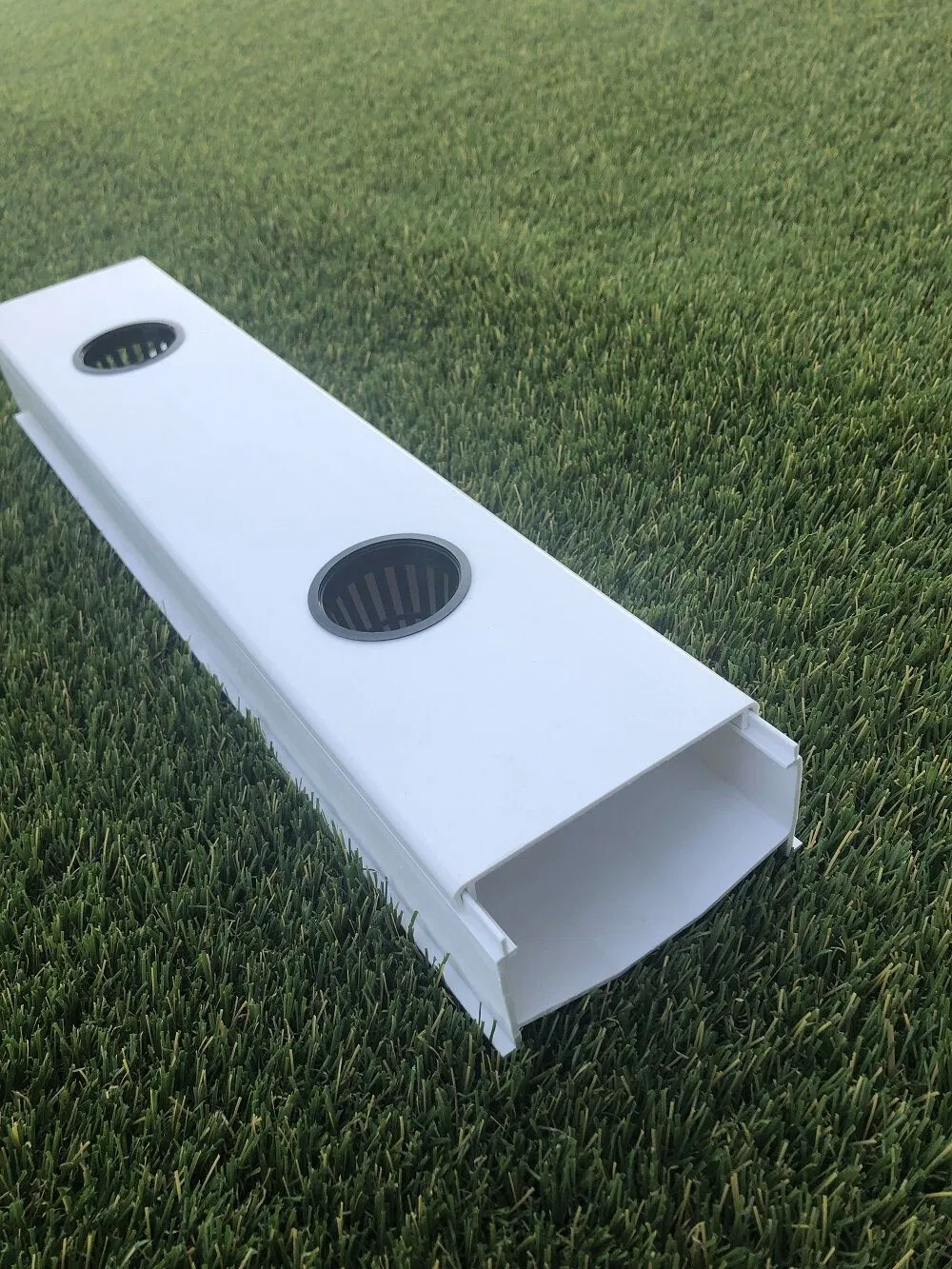

Specification100x50mm

Capacity10000m/Day

ColorWhite

Product Description

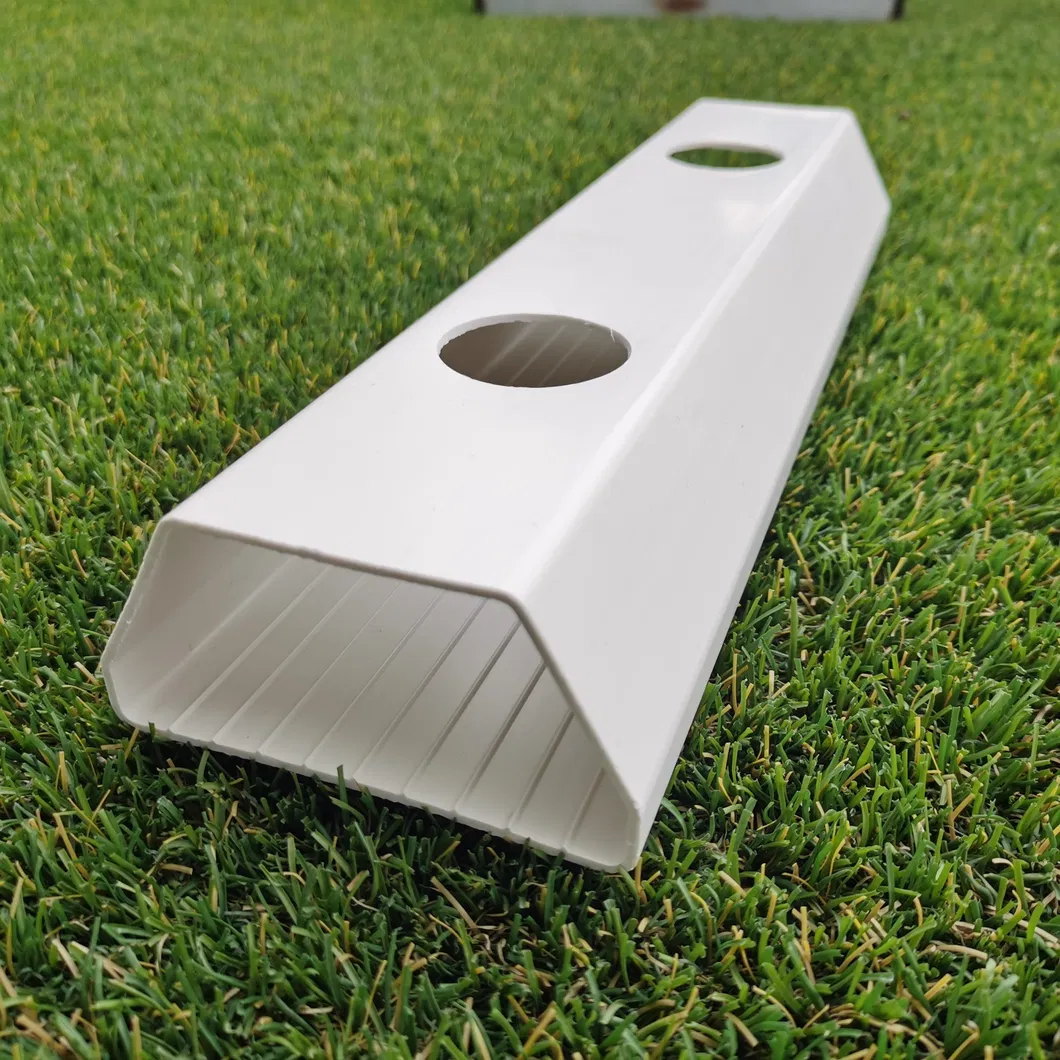

Professional Hydroponic NFT Channel (100x50mm / 110x110mm)

NFT channel for hydroponics systems are especially suitable for leafy vegetables and various lettuce varieties. Designed for efficiency and high yield.

Easy assembled, convenient, and time-saving.
No soil is needed, saving agricultural land.
Compatible with Expanded clay, Perlite, and Coconut coir.
Fully controllable growing conditions.
Stable and high productivity.

Item Name	Hydroponic NFT Channel

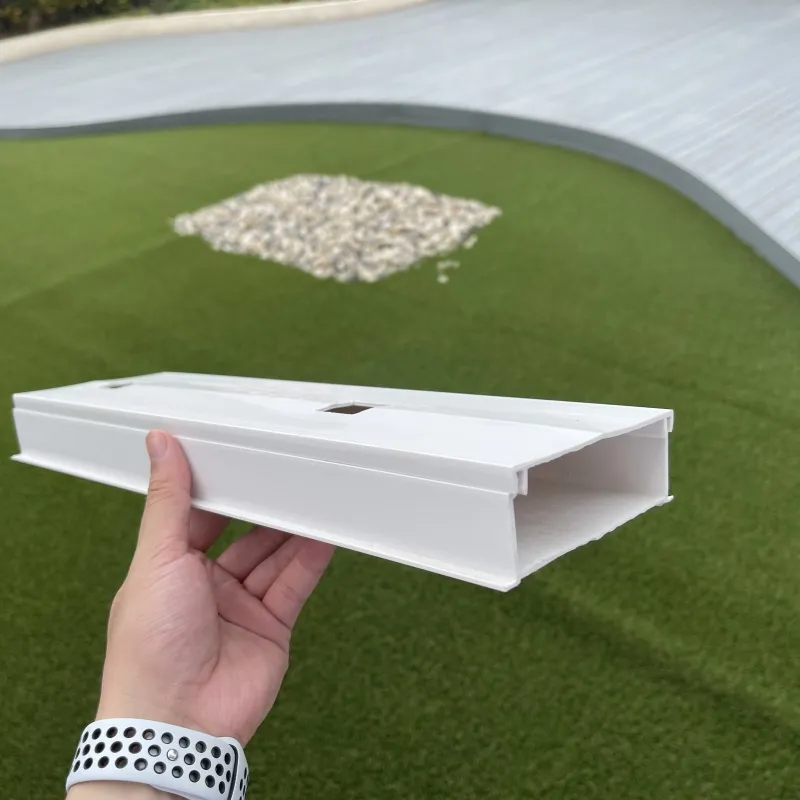

Available Sizes	100x50mm, 110x110mm, 100x40mm
Material	Safe Virgin PVC (Food Grade)
Life Time	More than 10 years
Anti-UV	Yes, Environmentally friendly

Detailed Photos & Designs

⭐ Key Technical Advantages

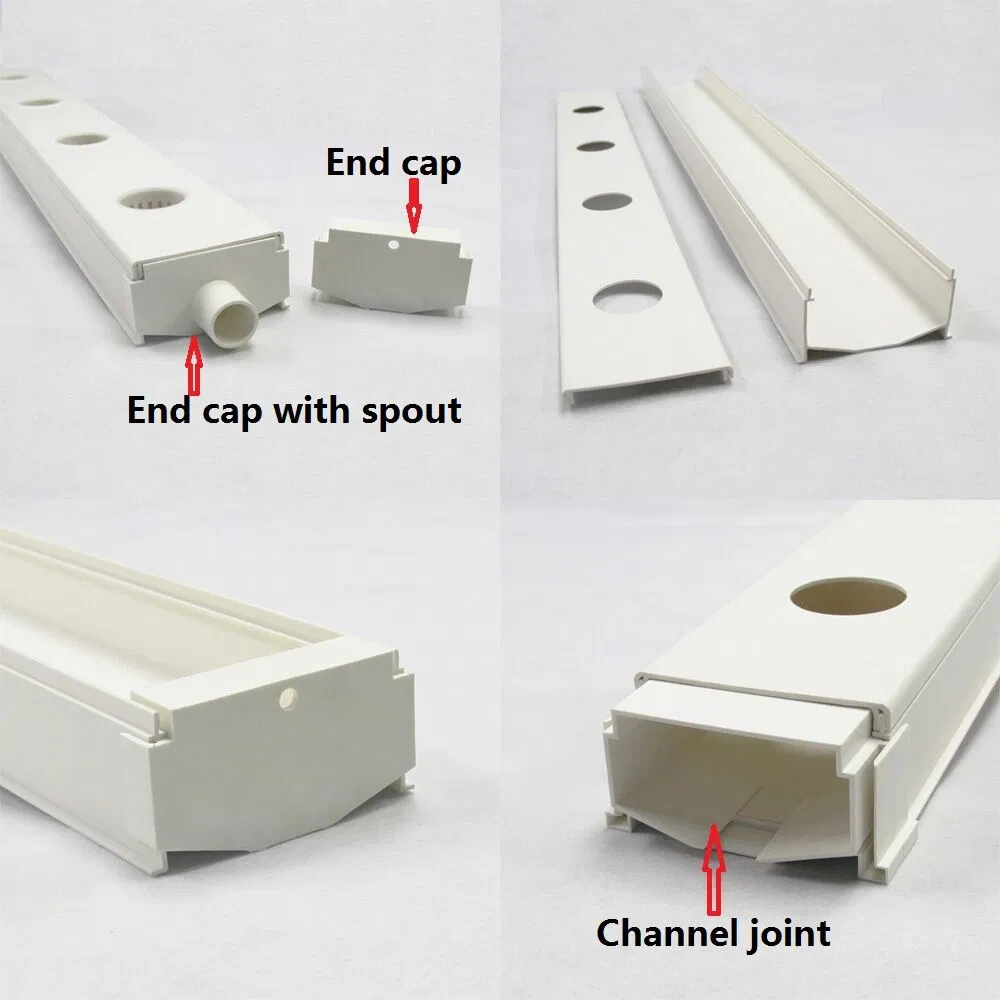

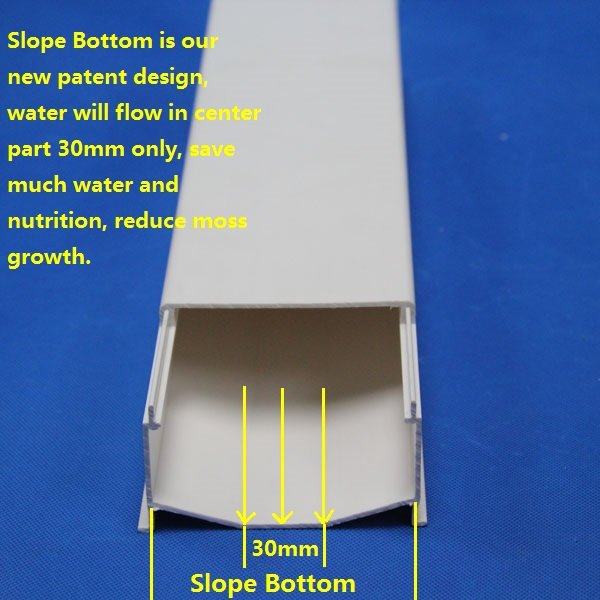

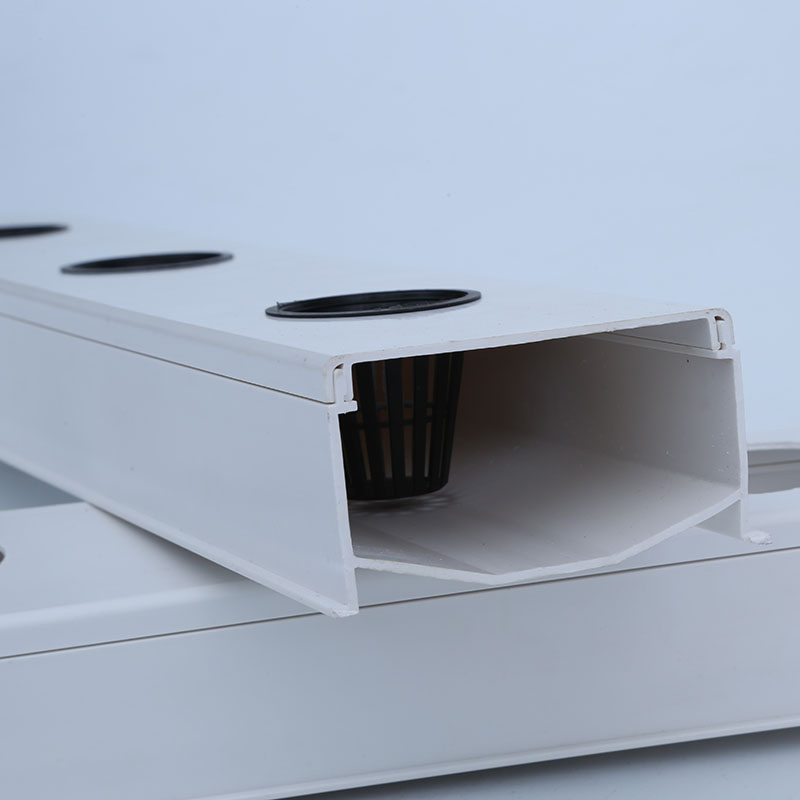

Depressed Central Base: Allows nutrient-rich water better access to roots.
Water Saving: Water flows in the center part only (30mm width), saving up to 80% water and fertilizer.
High Strength: Can bear 80kgs weight with no deformation.
Removable Cover: Designed for easy cleaning and maintenance.

Customized System Designs

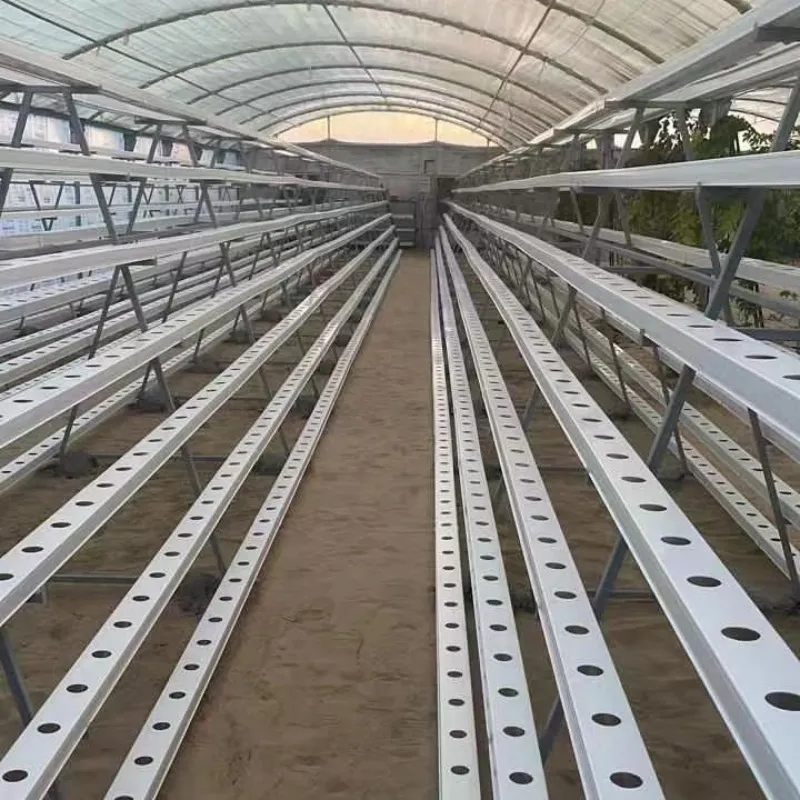

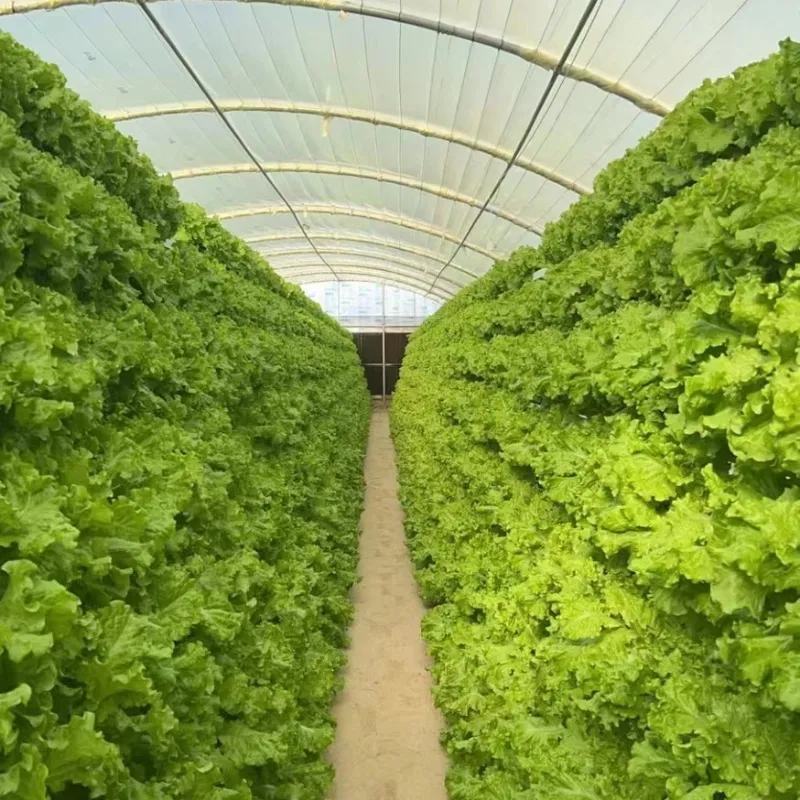

Design 1: Vertical "A" Frame System - Best for maximizing space in small/medium greenhouses.

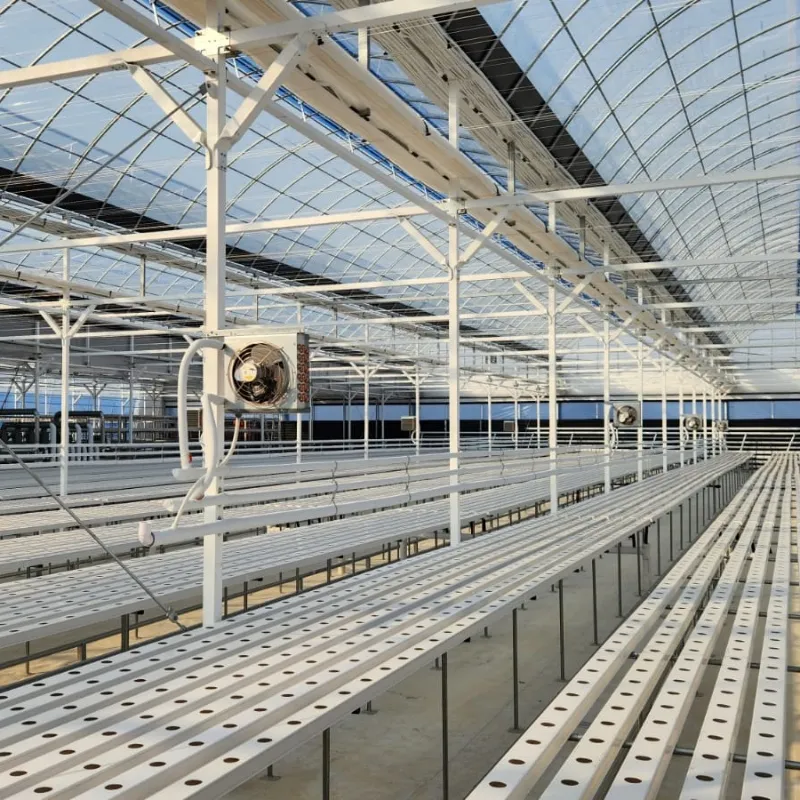

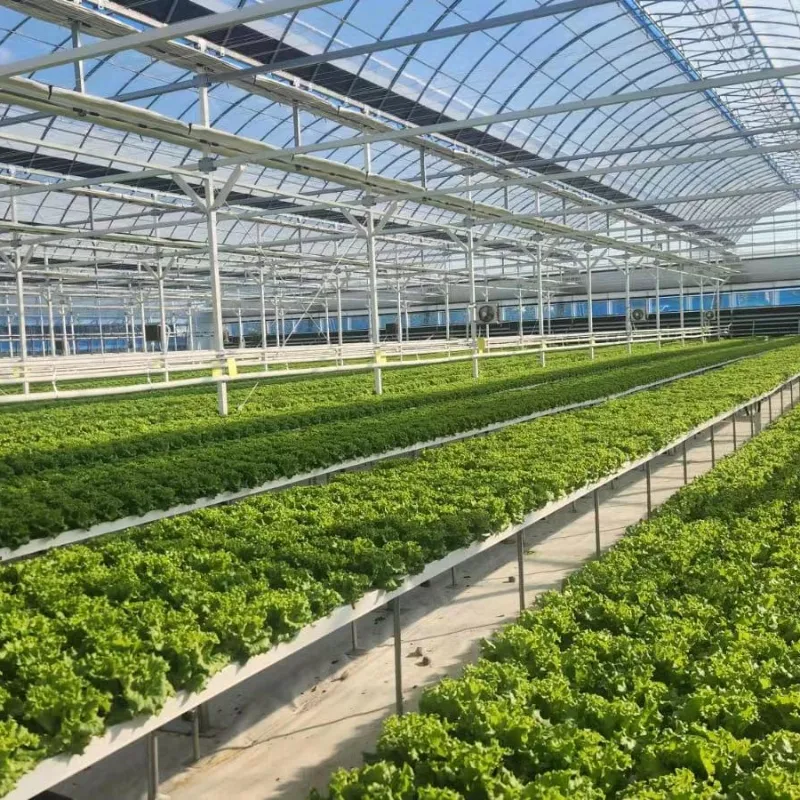

Design 2: Horizontal Table System - Ideal for large-scale commercial planting with easy management.

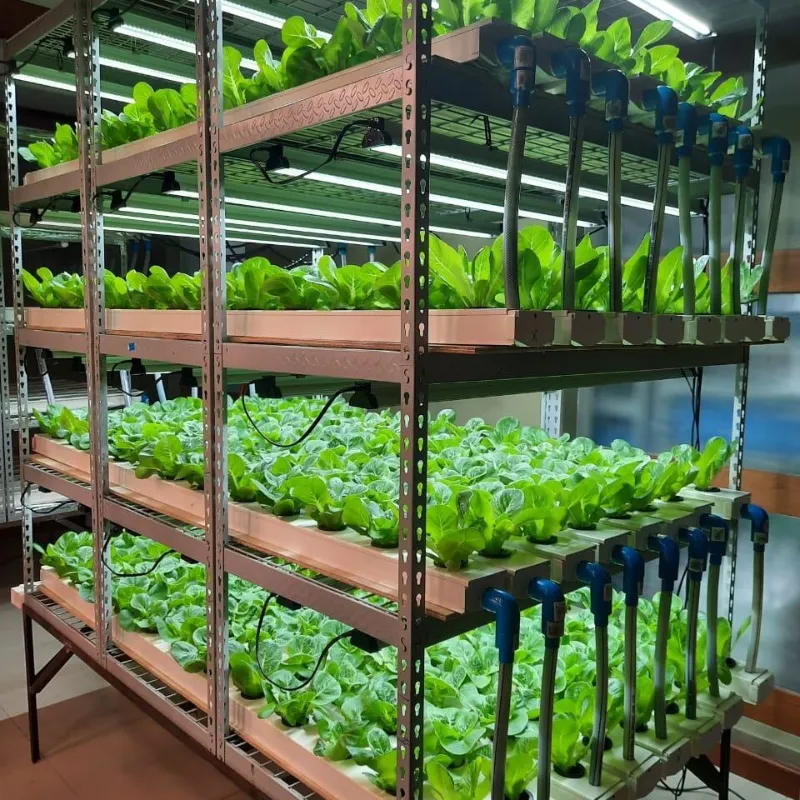

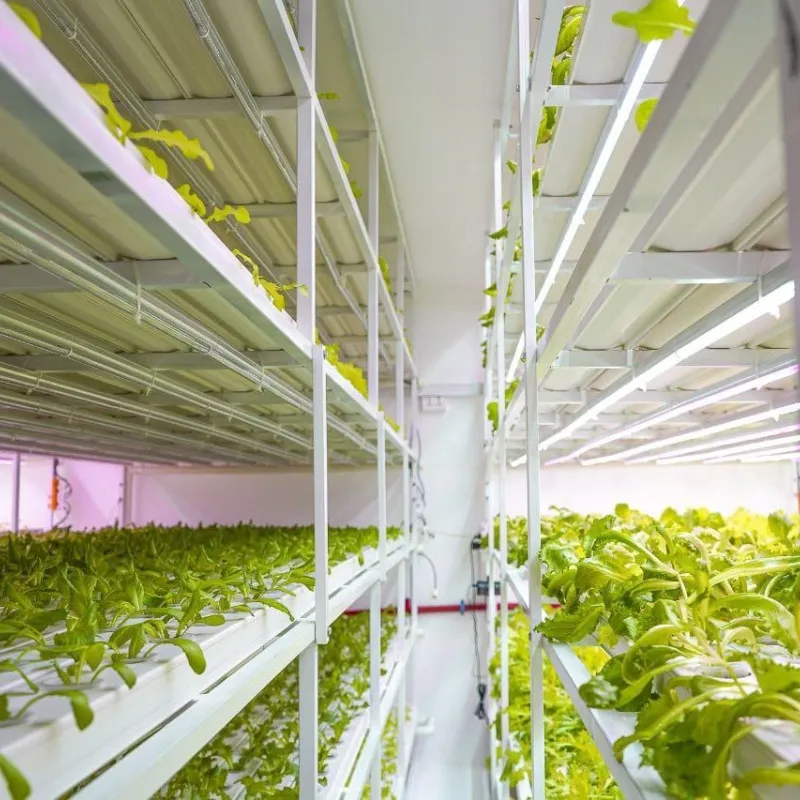

Design 3 & 4: Multi-layer & Indoor LED Systems - Perfect for indoor factories with controlled environments.

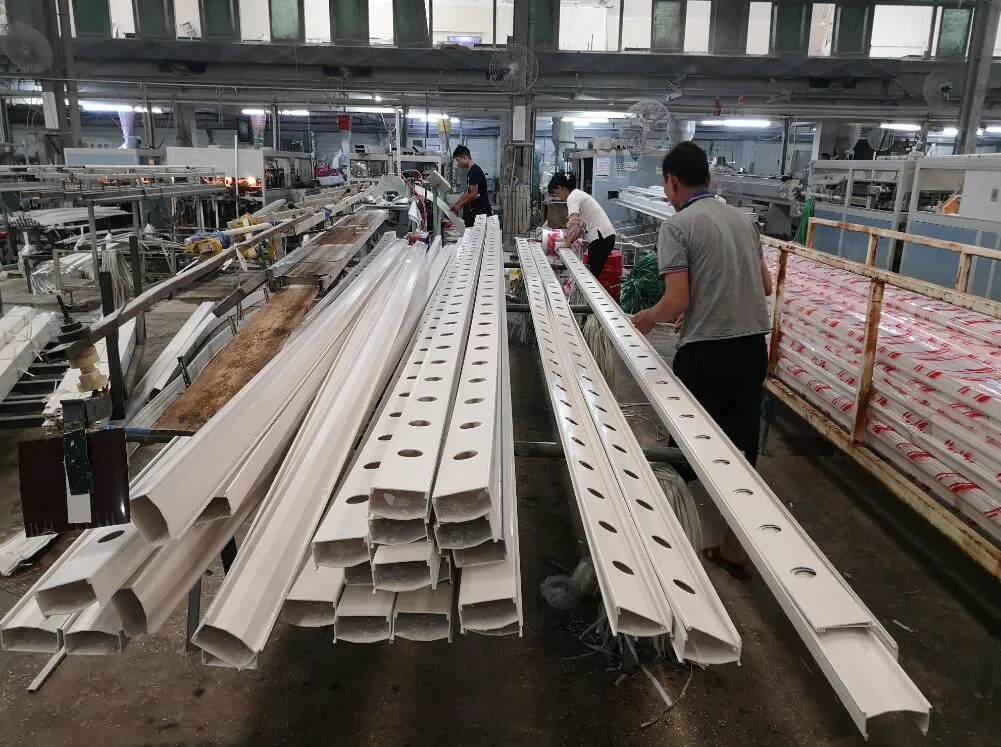

Production & Quality Control

With over 10 years of experience in NFT hydroponic systems, we provide food-grade PVC-M pipes and comprehensive accessories including Dutch buckets, net pots, and growing media. Quality control is maintained from raw material selection through final production.

Certifications

Frequently Asked Questions

What crops can be grown in this NFT system?

The system is ideal for leafy vegetables such as lettuce, kale, basil, spinach, mint, celery, and herbs, as well as strawberries.

Is the PVC material safe for food production?

Yes, we use food-grade, safe Virgin PVC material that is heavy metal-free and environmentally friendly.

How long do the NFT channels last?

The channels are built with anti-UV properties and have a service life of more than 10 years.

Can the channel length be customized?

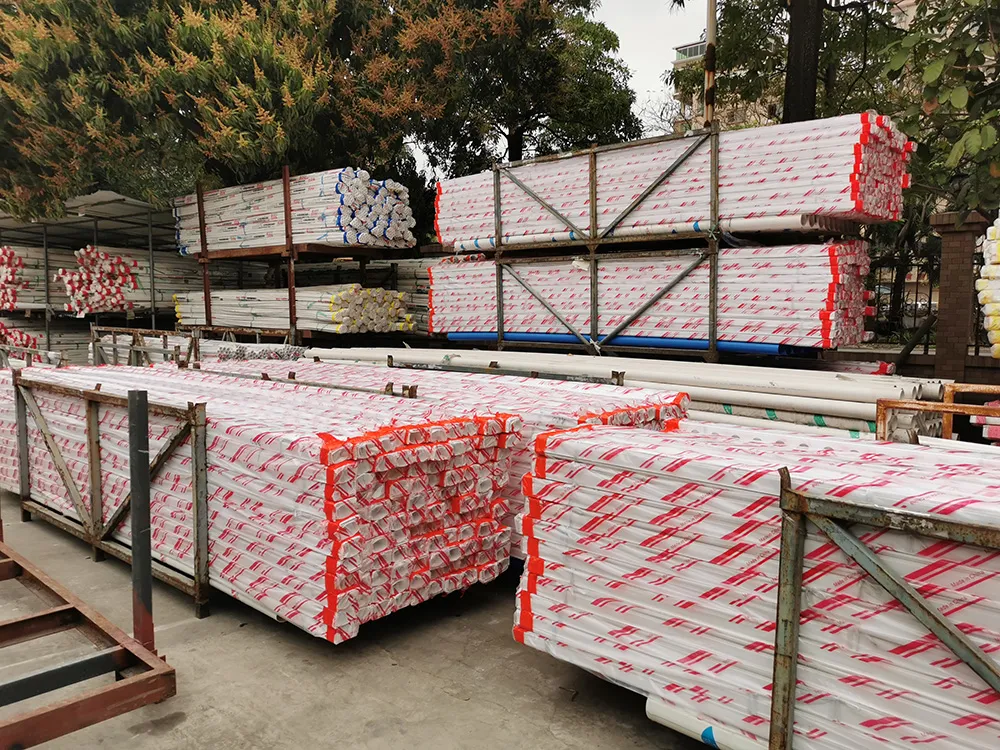

Standard lengths are 2.9m and 5.8m (for container loading), but we can customize to 3m, 4m, 6m, or 7m upon request.

Why is the central base depressed?

The special central base design ensures that even a small amount of water/nutrient solution flows directly under the roots, saving resources and ensuring plant survival.

How do I clean the system?

Our NFT channels feature a removable cover design, allowing you to easily open the top for thorough cleaning between planting cycles.
