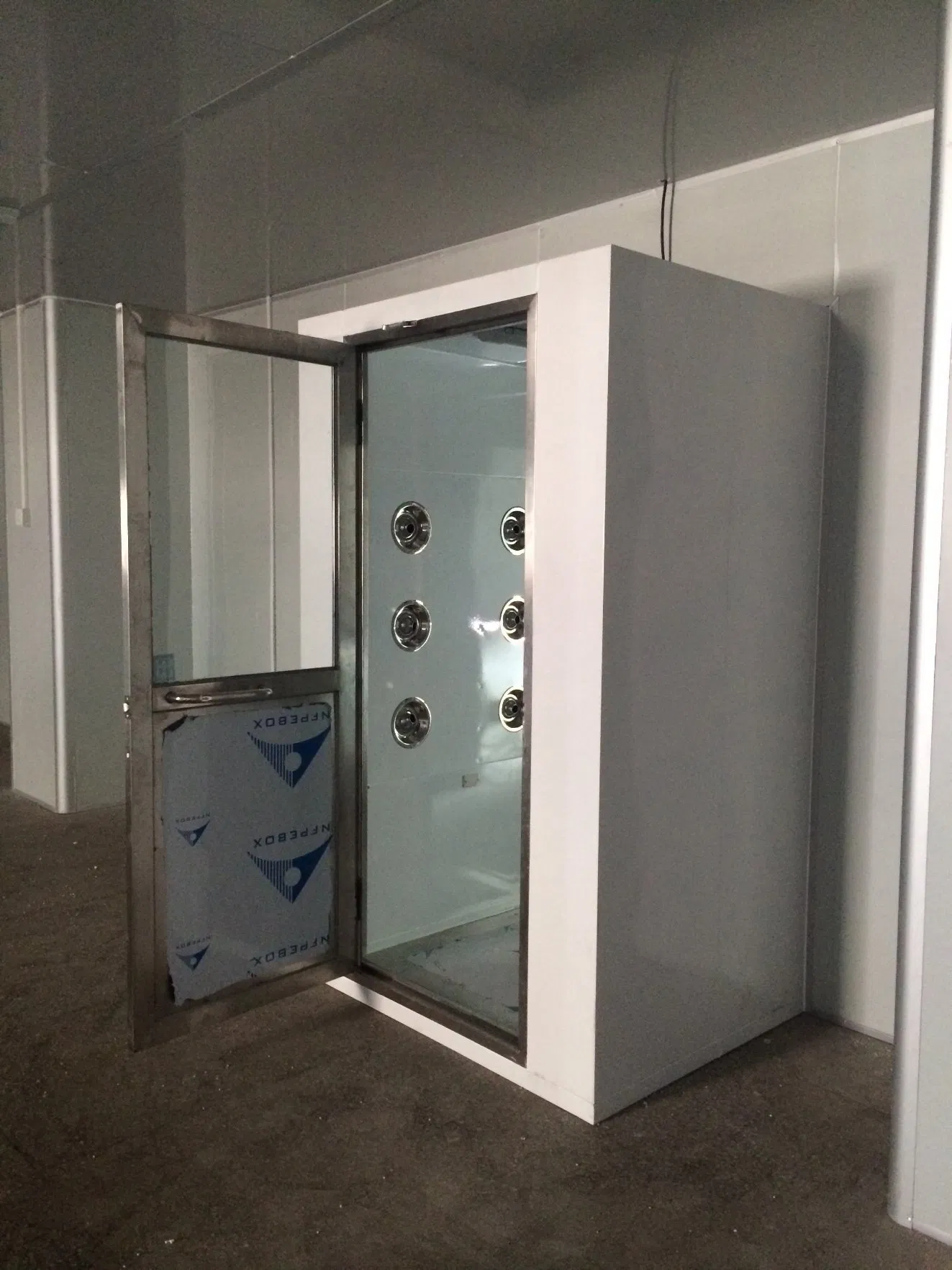

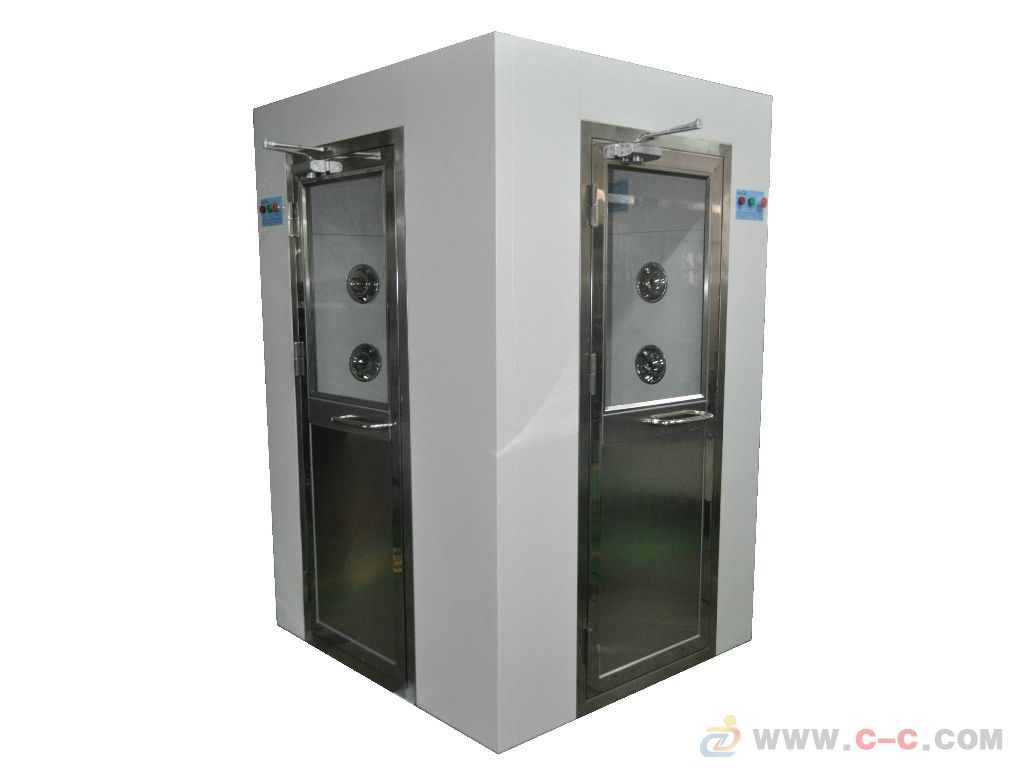

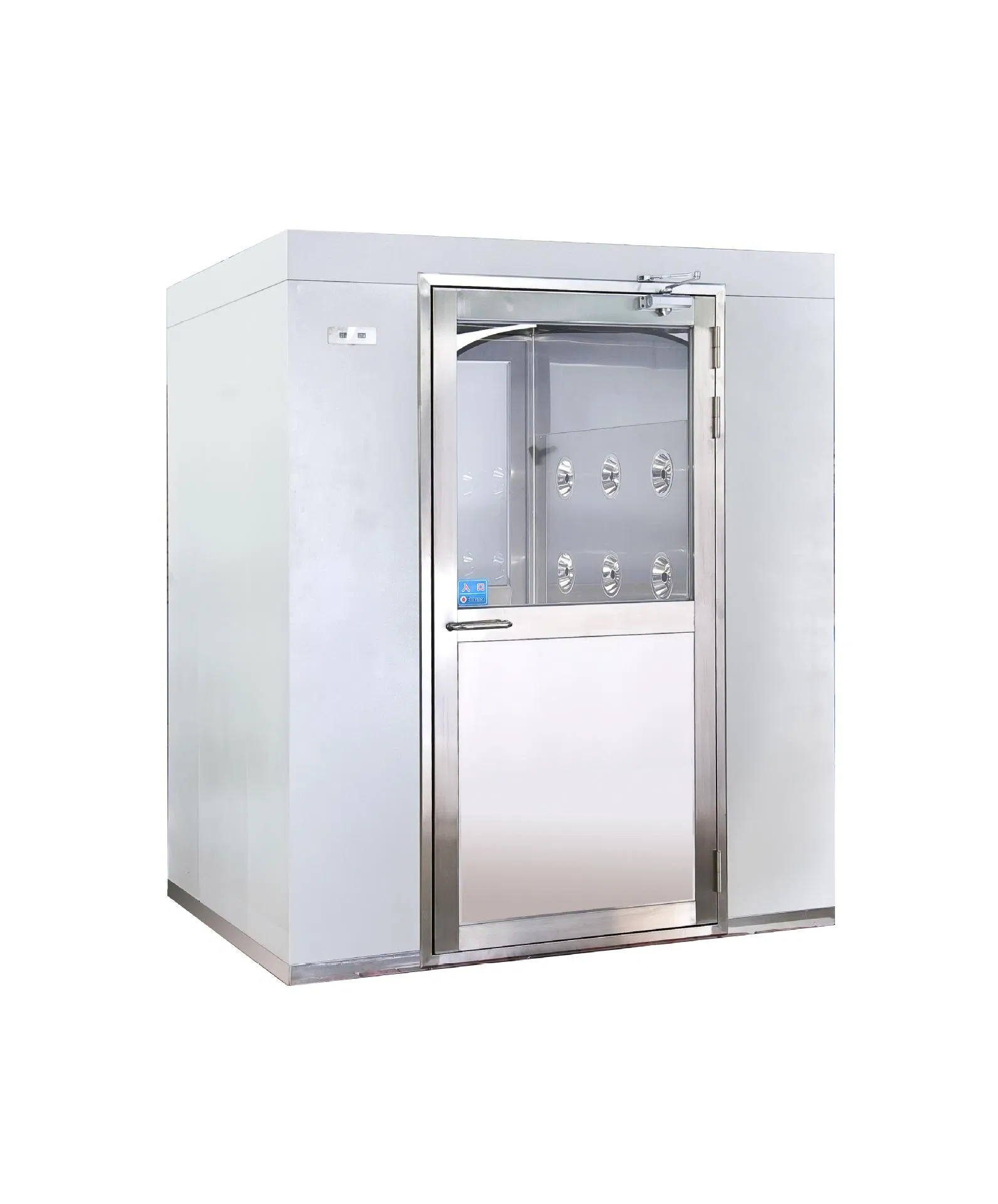

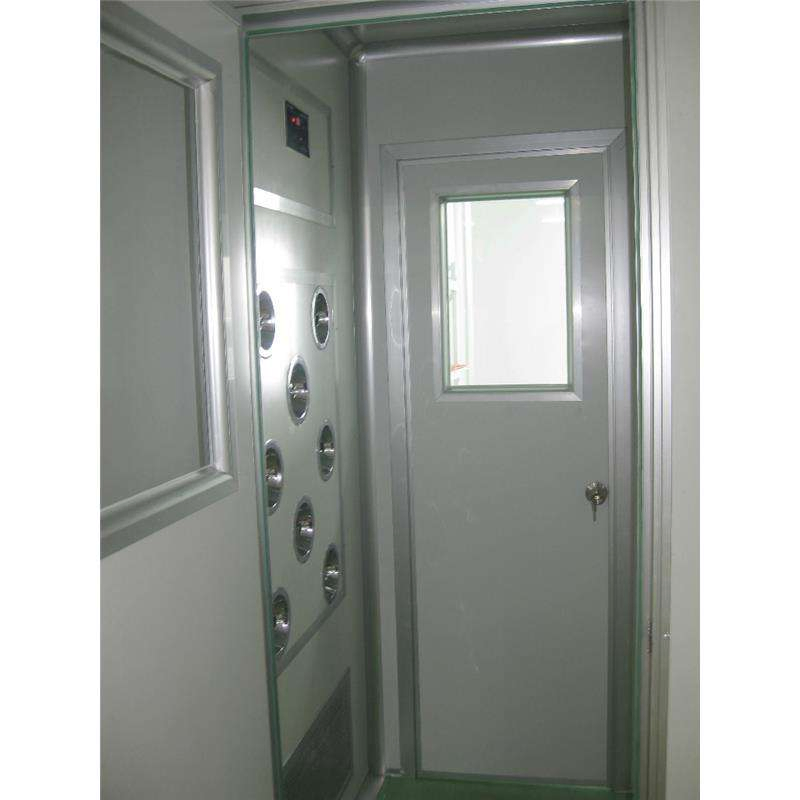

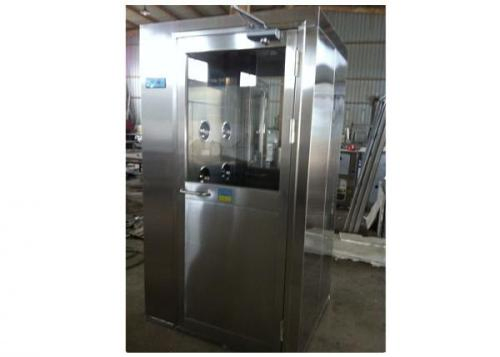

High Quality Air Shower for Controlled Environments
Air shower rooms are essential clean room plant and assembly supporting equipment. With the rapid advancement of air purification technology, these systems are widely used in precision instruments, electronics research, metallurgy, chemical industries, pharmaceuticals, and food processing. The air shower functions as a buffer zone and purification station, removing surface dust from personnel and goods before they enter a sterile environment, while effectively acting as an air brake to prevent contaminated air from entering purified areas.
| Parameter Item | Specification Details |
|---|---|
| Filtration Efficiency | > 99.99% |
| Jet Wind Velocity | > 20 m/s |
| Air Leaching Time | 0-99s (adjustable) |
| Outer Box Material | Cold rolled steel or stainless steel with paint |
| Disc Bottom | Stainless steel floor |
| Power Supply | AC, 3N, 380V ± 10%, 50Hz |
| Sort | Component | Standard Specification |
|---|---|---|
| Dimensions | Clear Height | 2400mm |
| Framework | Ground/Roof Beam | 3mm galvanized angle iron |
| Central/Corner Column | 4mm galvanized angle iron | |
| Wall Panel | 60mm double-faced sandwich board | |
| Roof Insulation | 110mm glass wool | |
| Openings | Door | Aluminium alloy, 750mm x 2000mm |
| Window | Plastic steel swing, double layer glass |
