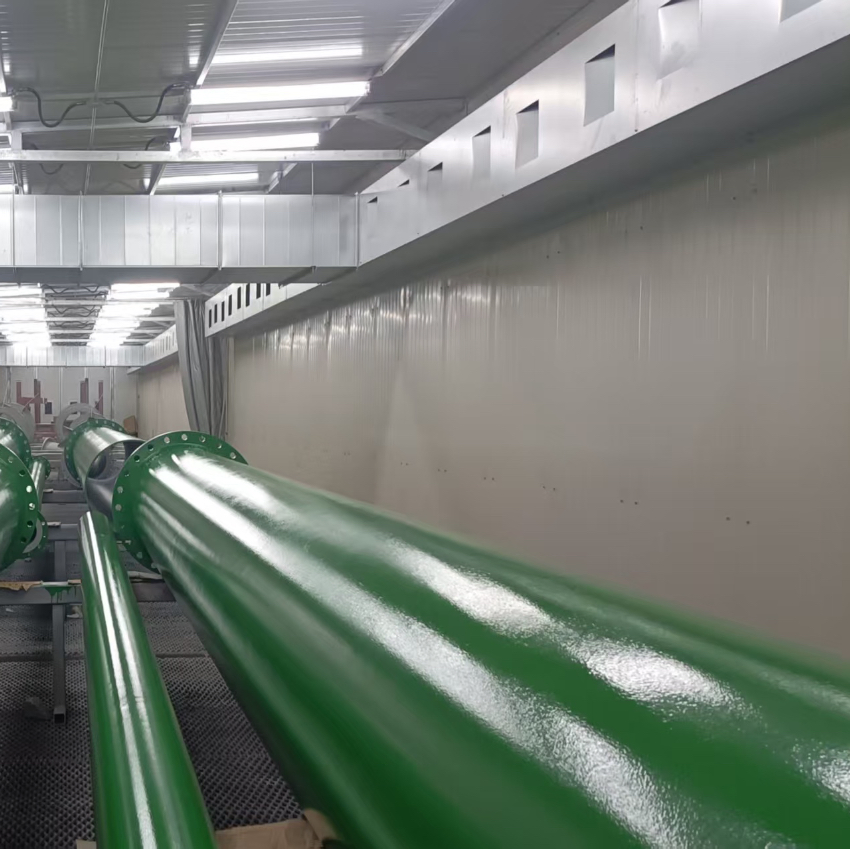

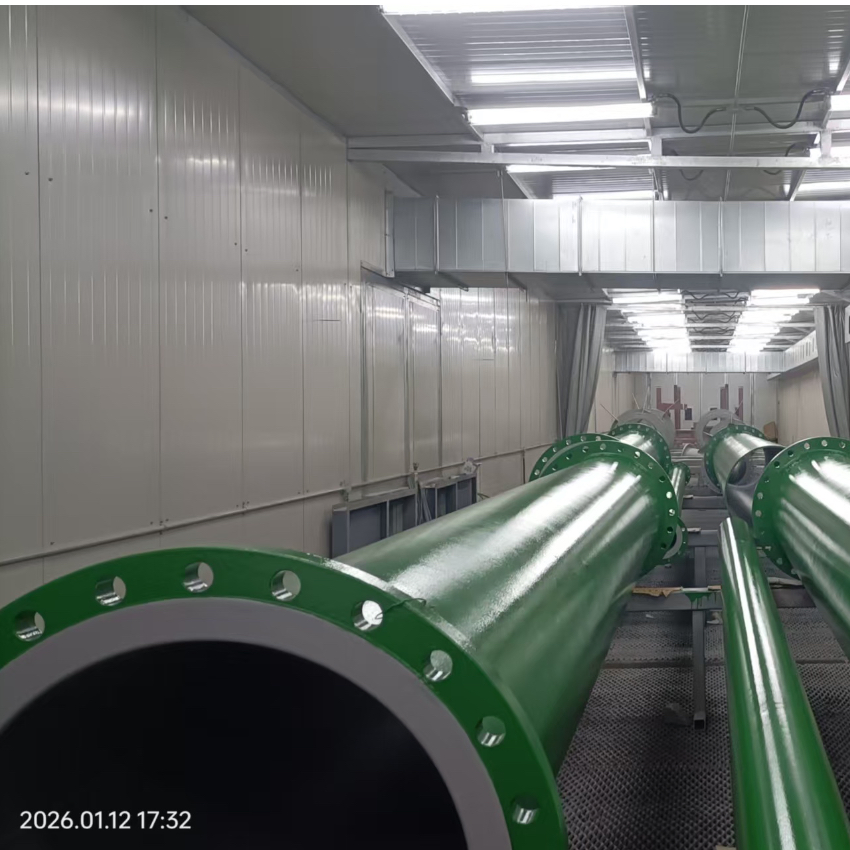

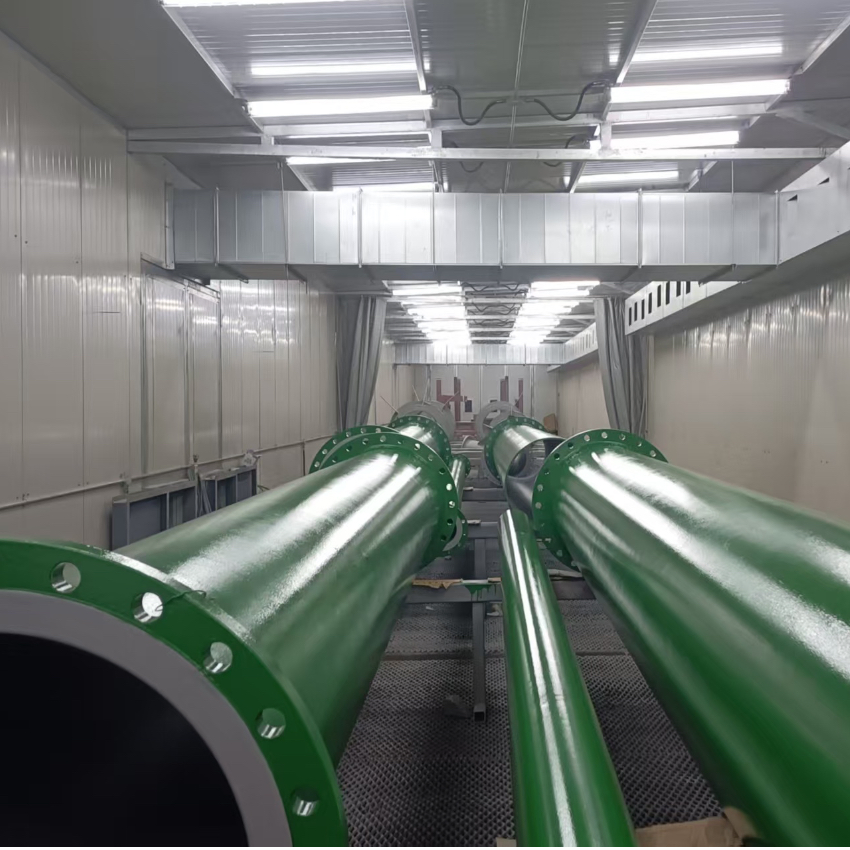

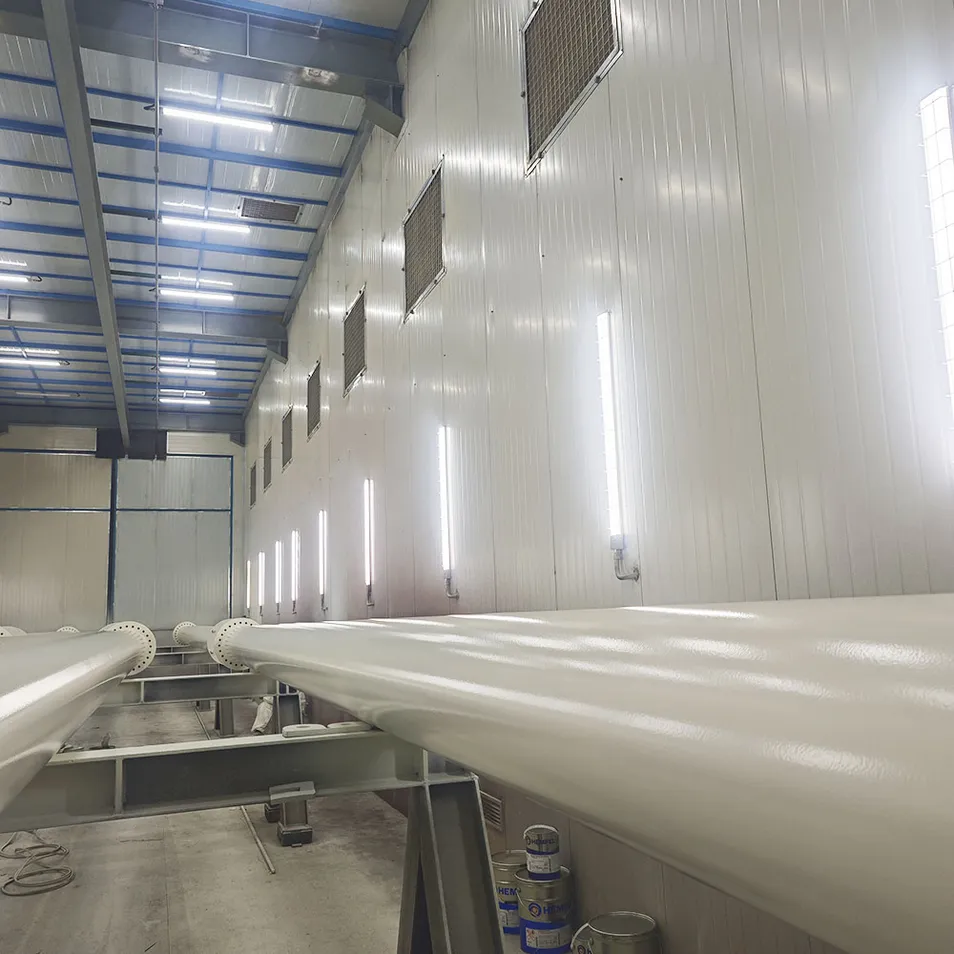

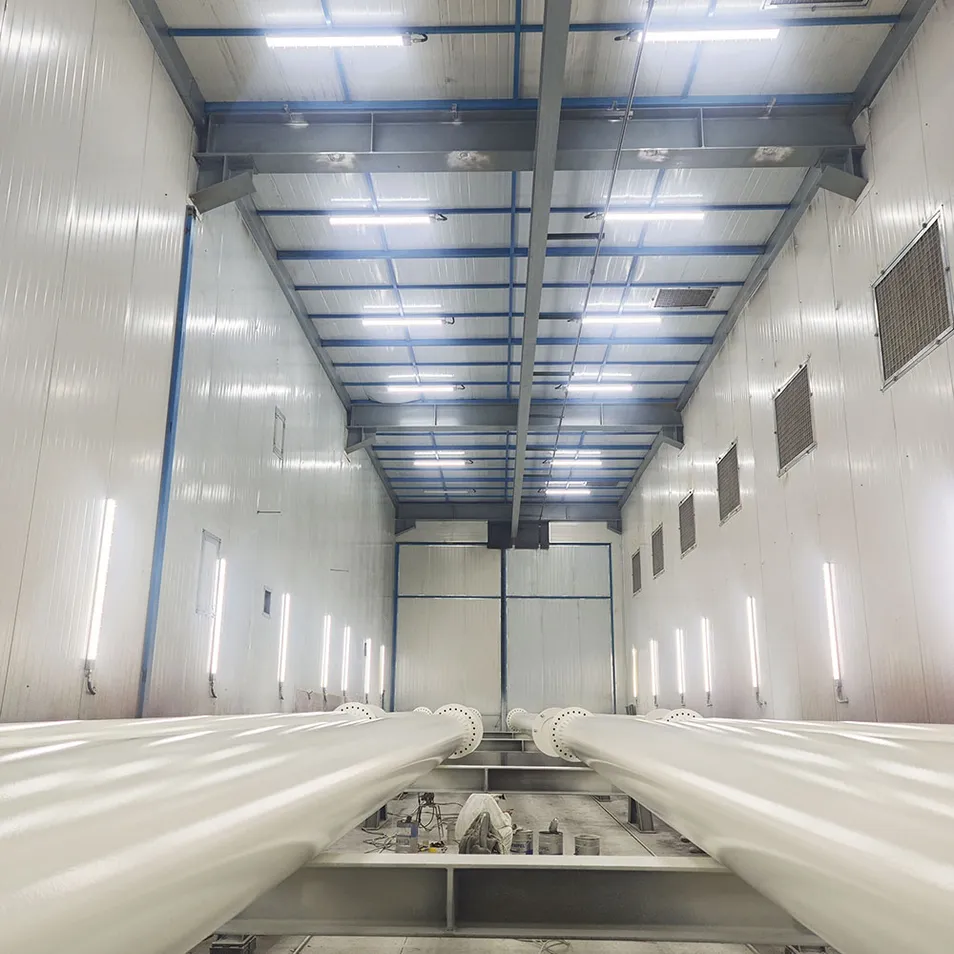

The enclosed space isolates the spraying area from the outside environment and possesses excellent sealing, fire resistance, and corrosion resistance properties.
The air intake filter is located on the top and side walls and contains filter cotton, ensuring the cleanliness of the incoming air, which is crucial for spray painting quality.
Outdoor air is drawn in, filtered, and then its temperature and humidity are adjusted before being evenly distributed into the spray booth. This creates a stable, directional airflow that controls the movement of paint mist.

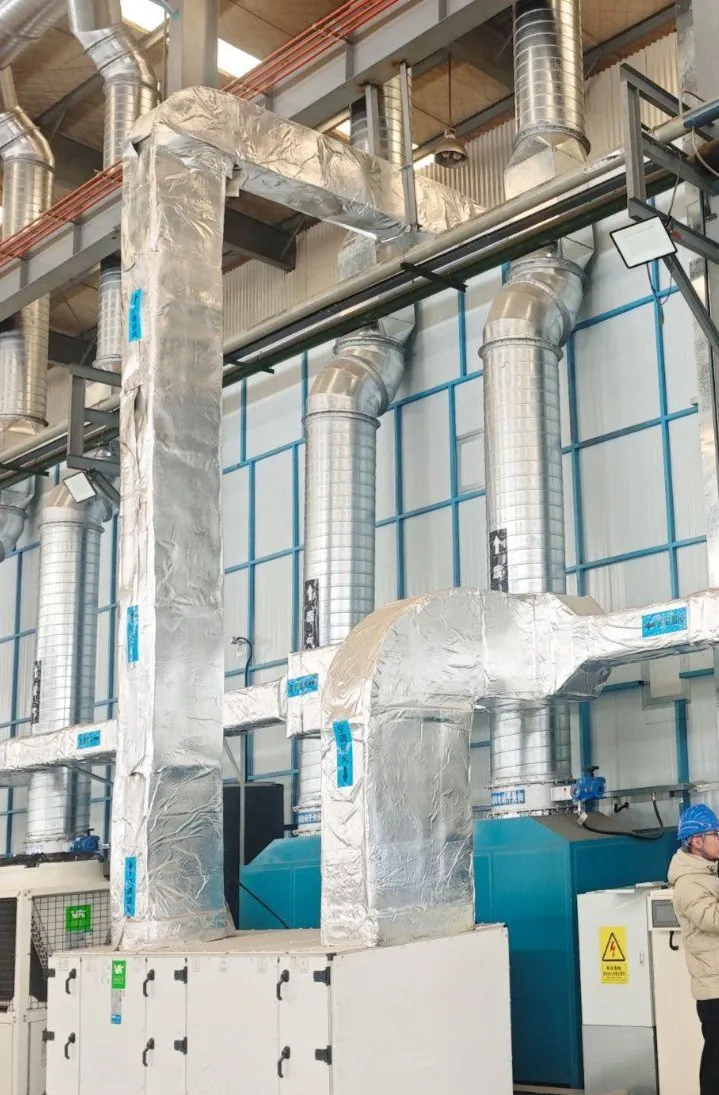

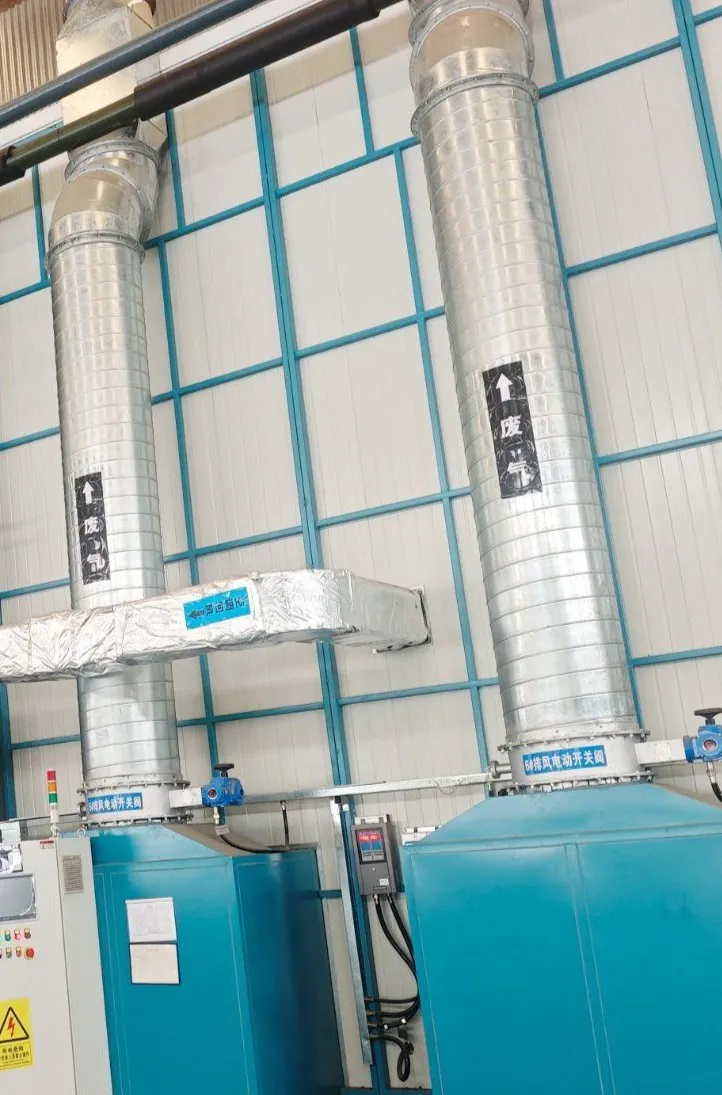

The exhaust fan extracts air containing paint mist. The gas is purified through filters before being discharged, meeting environmental emission regulations.
| Certification | ISO |
| Airflow Direction | Top inlet, bottom return / Top inlet, rear return / Top inlet, side return |
| Paint Mist Treatment | Dry-type / Wet type |
| Heating System | Electric, Diesel, Natural Gas |
| Wall Panel | Rock wool board / Foam board |
| Fan Type | YDW / 4-72 / 4-82 centrifugal fan |
