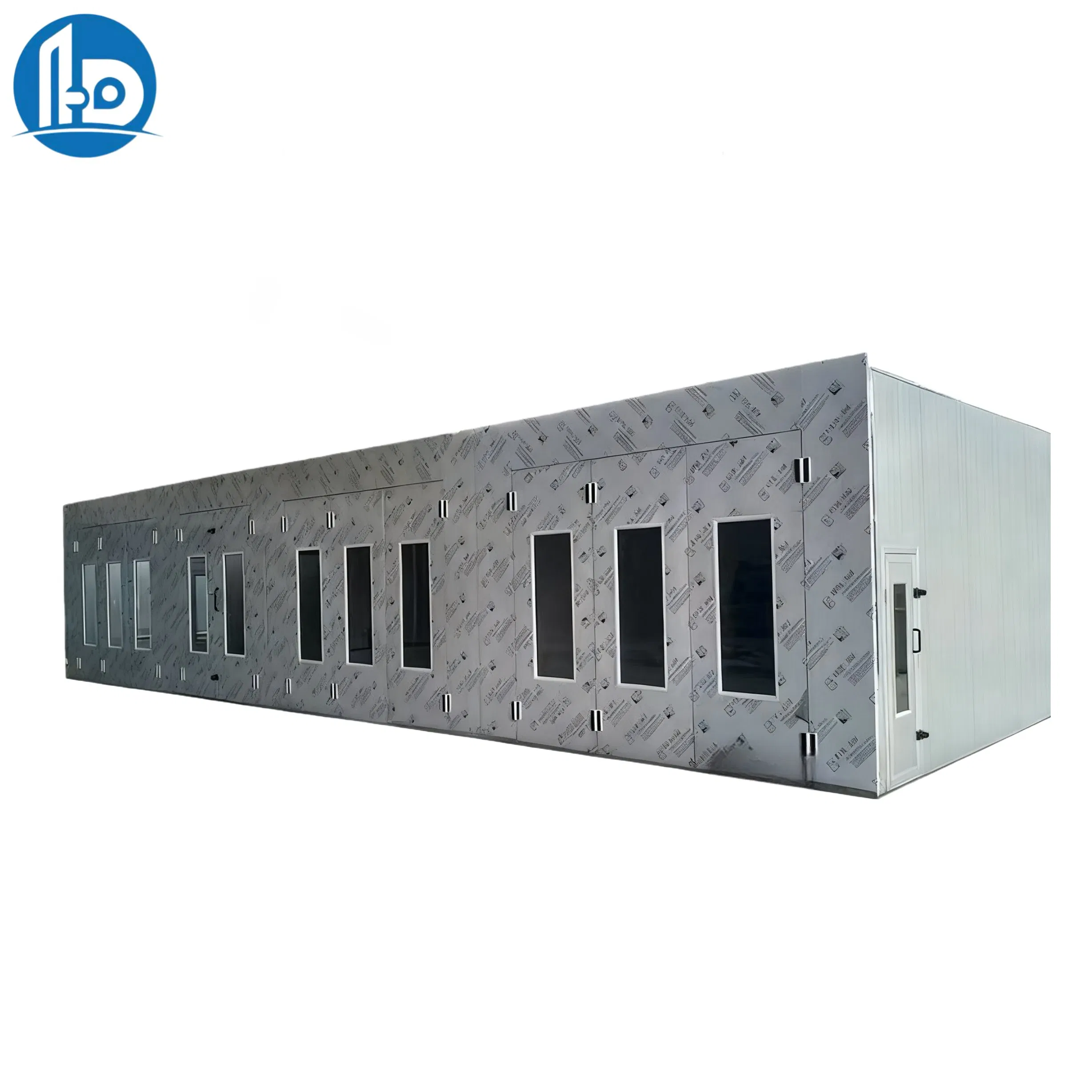

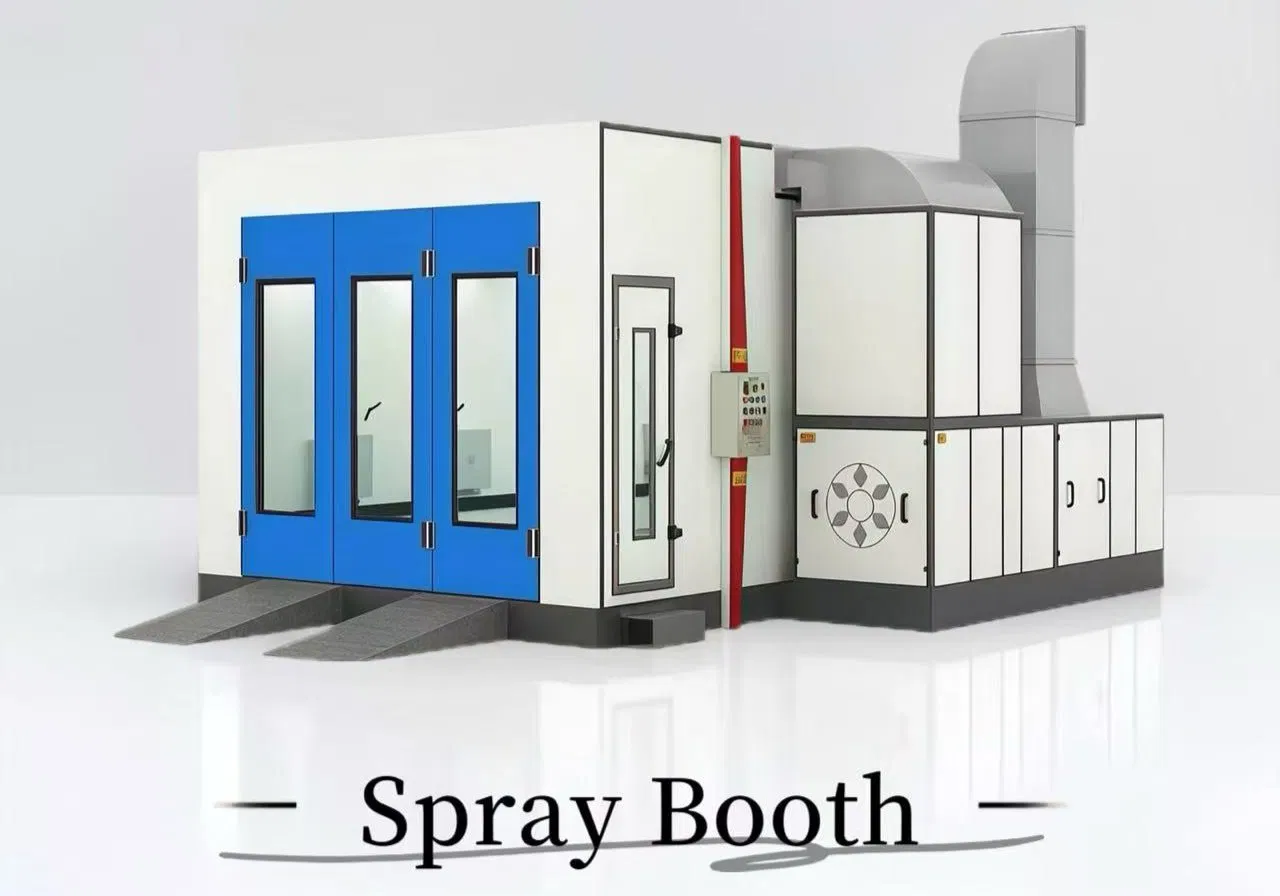

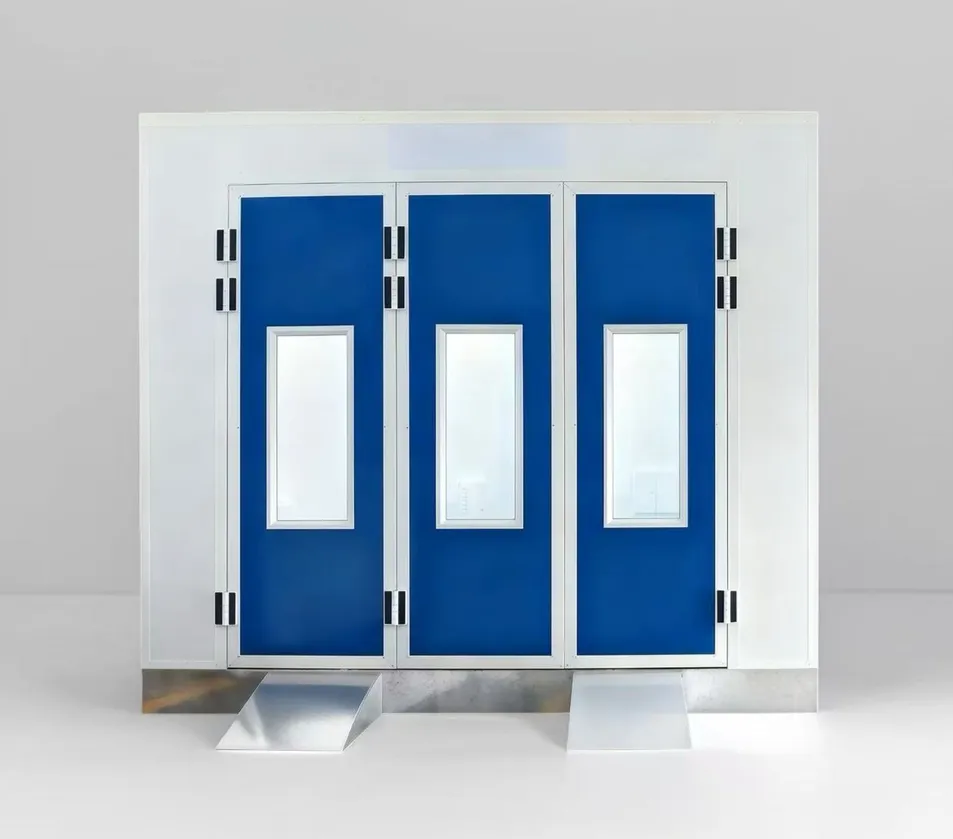

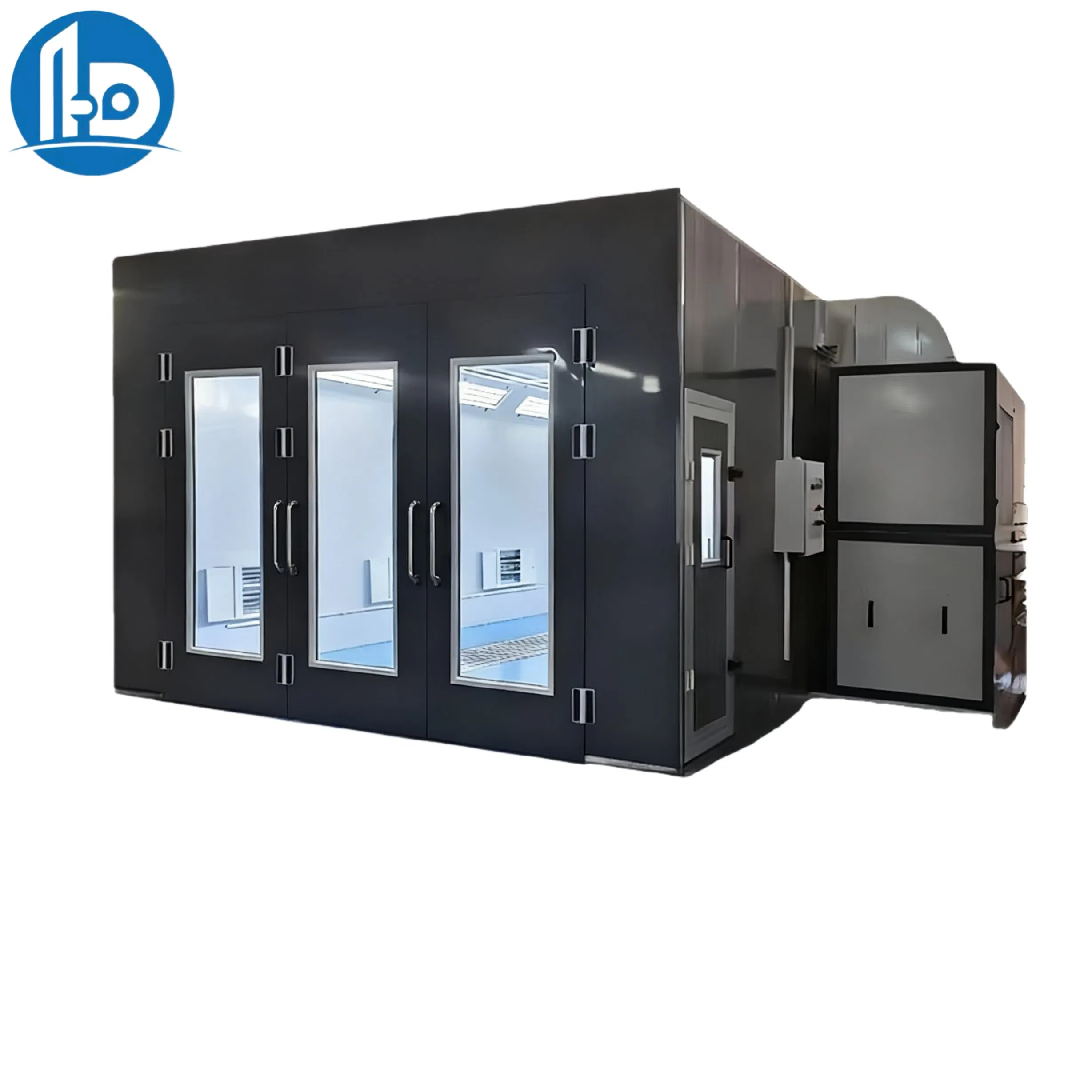

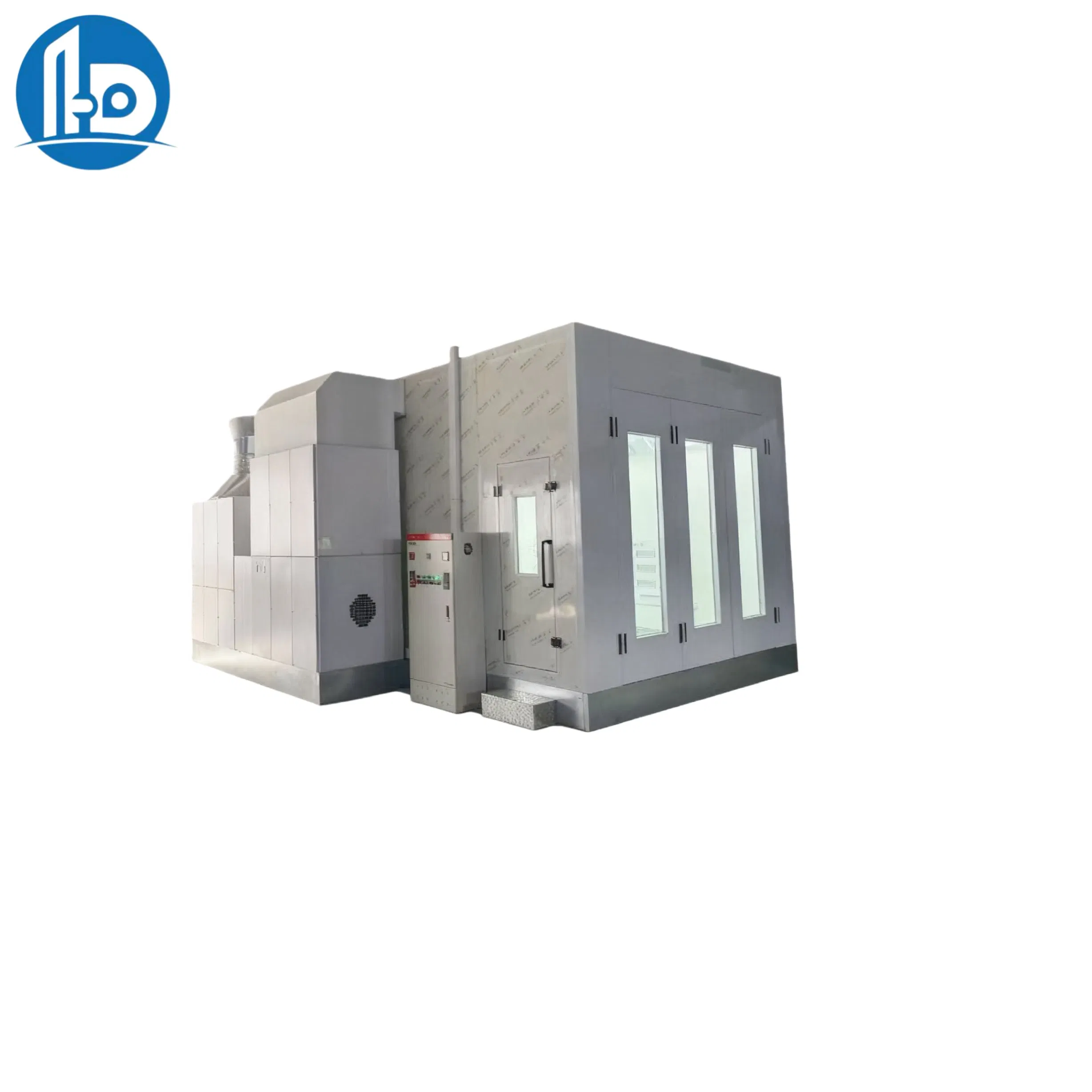

Industrial Spray Booth is designed to provide high-efficiency spray painting, powder coating, and surface treatment solutions for various industries. Whether for automotive, furniture, metal, or other industrial applications, these spray booths are engineered to ensure safe, clean, and effective work environments.
The booth features excellent air filtration, ventilation, and dust removal systems to ensure high-quality finishes and compliance with environmental standards. It is customizable in size and design, equipped with efficient exhaust systems, airflow management, and LED lighting for optimal visibility.
| Category | Sub-item | Specifications |
|---|---|---|

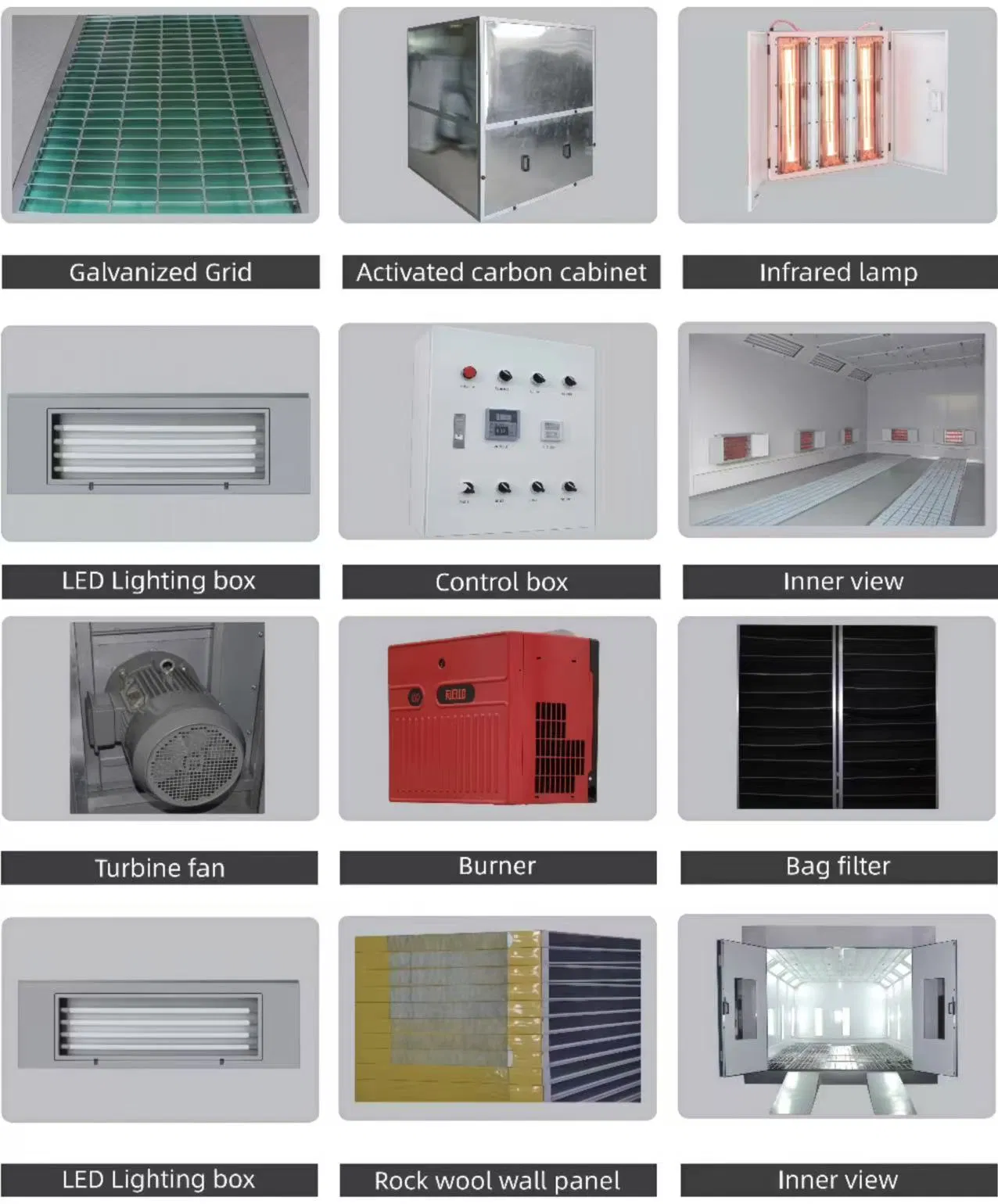

| Base | Ground Layout | Grating made of 30×4 mm flat steel, galvanized. Load capacity: 600 kg/wheel. |
| Support frame | 40×80 mm galvanized square steel tubing. | |

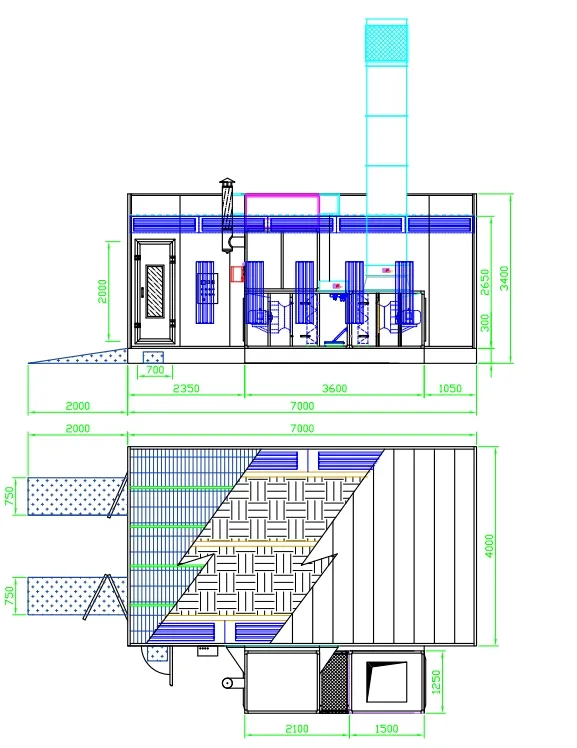

| Main Body | Internal Dimensions | 6900 × 3900 × 2650 mm (L × W × H) |
| Wall panels | 50 mm thickness, EPS insulation, 0.426 mm color-coated steel plates. | |

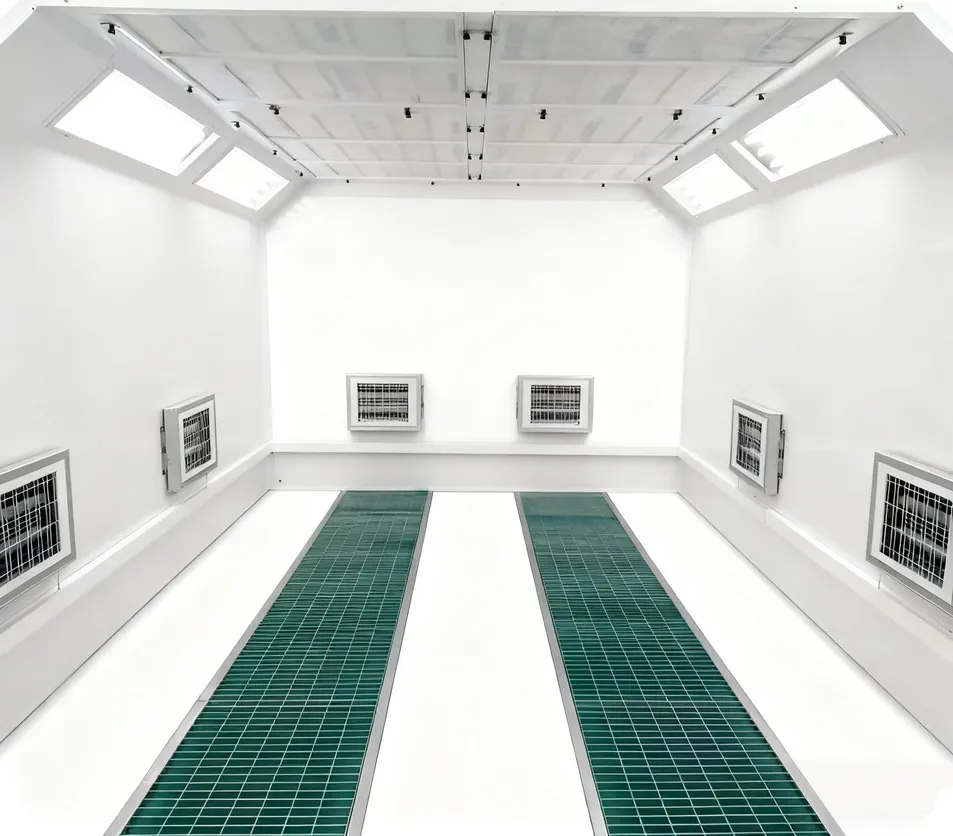

| Lights | 10 overhead lampshades & 10 side lampshades with fluorescent tubes. | |

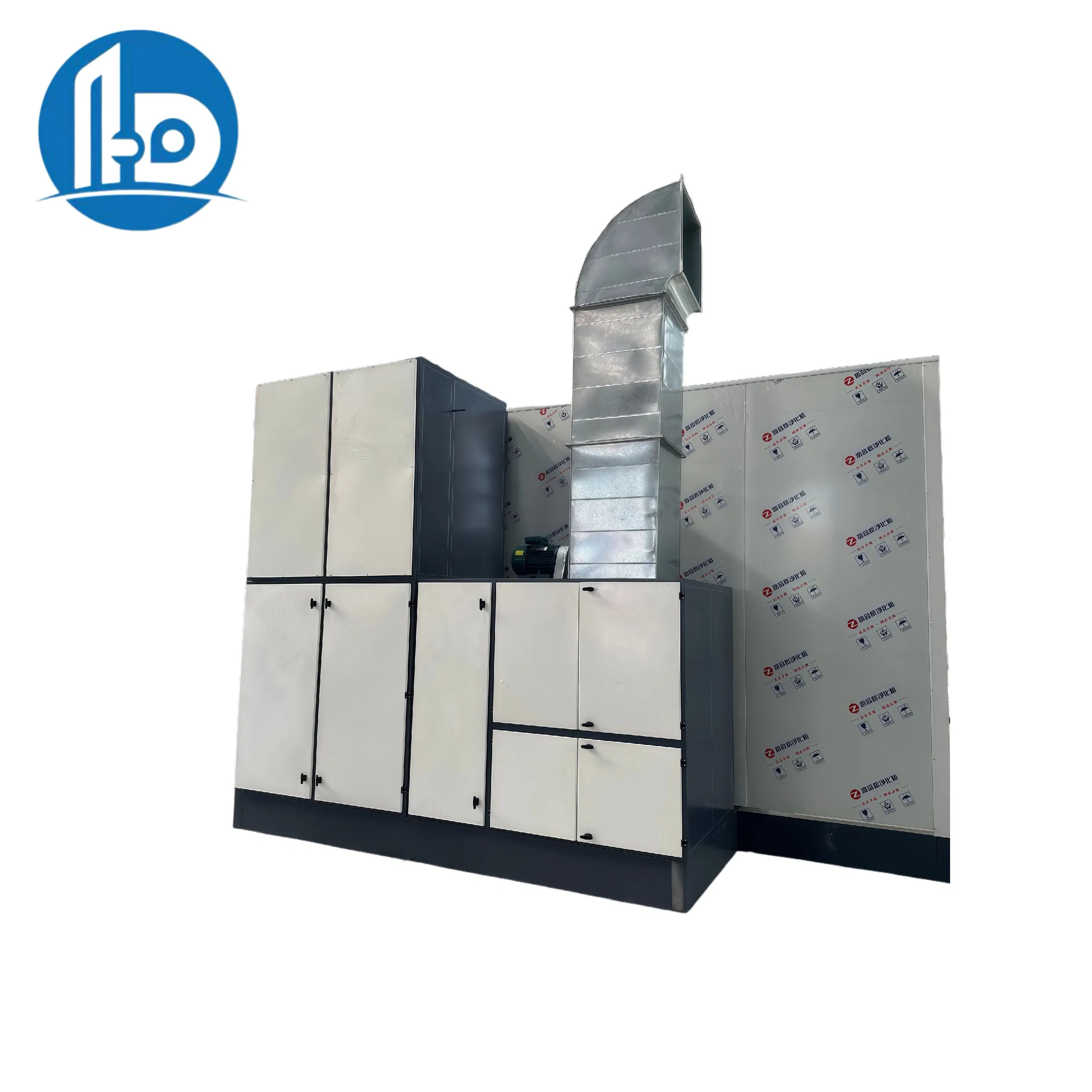

| Air System | Motor and fan | 7.5 KW Direct drive motor; Centrifugal fan, total airflow: 25,000 m³/h. |
| Heating | Burner | Riello RG5S diesel burner, 260,000 Kcal/h. |

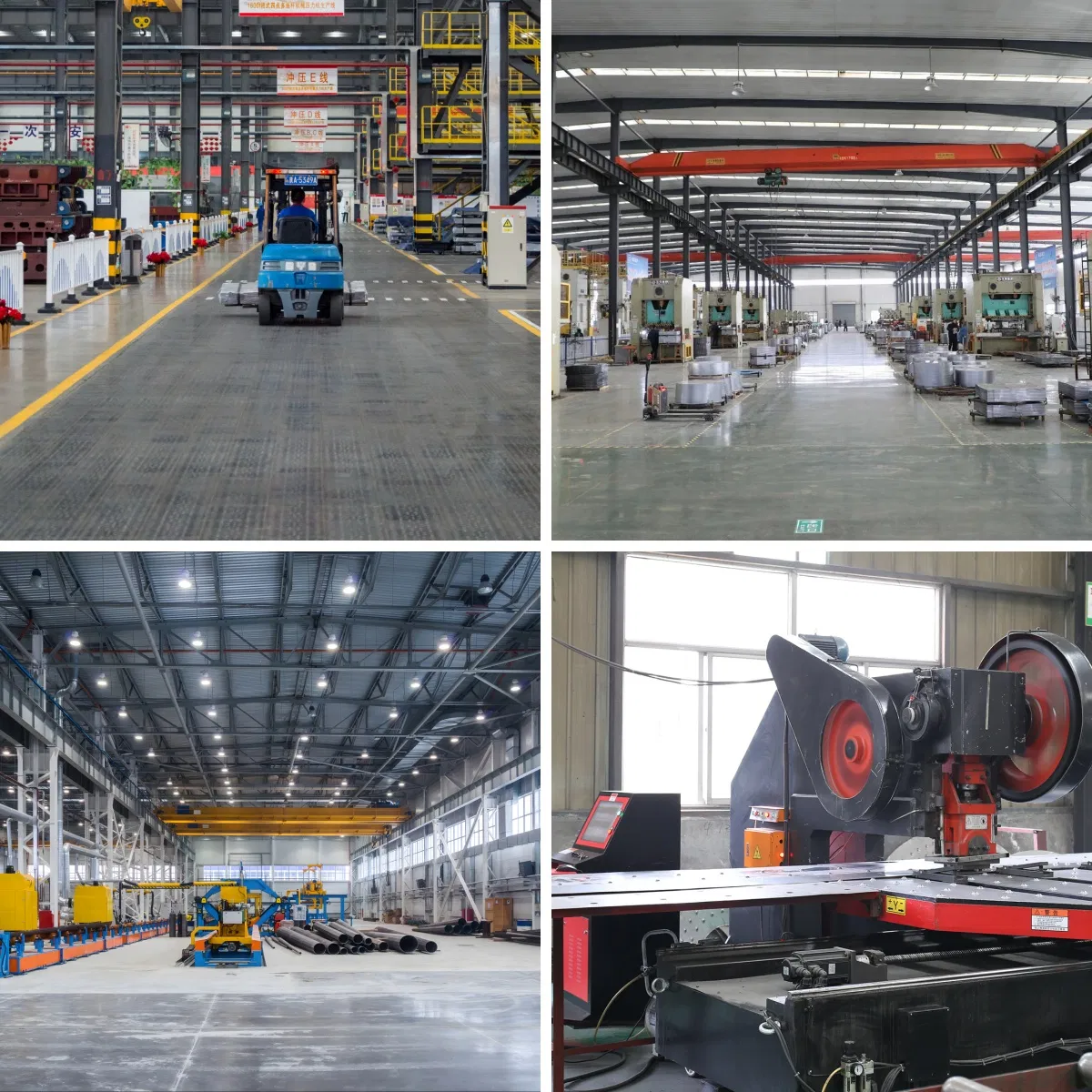

Specializing in manufacturing industrial spray booths, spray painting equipment, and surface treatment systems. With advanced production facilities and a professional R&D team, we provide customized solutions for paint booths, powder coating booths, and other industrial equipment. Our products are widely used in automotive, furniture, electronics, and metal industries.
