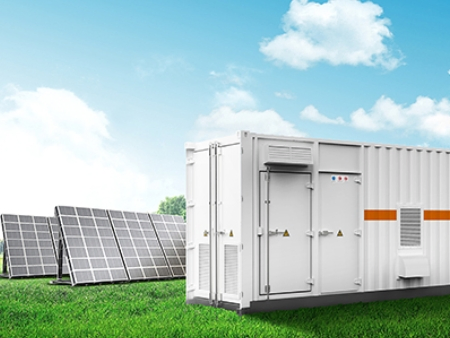

Advanced Eco-Friendly Energy Storage Solutions for Outdoor Use

Customization: Available
Weight: 2.6t
Warranty: 3 Years

Product Description

Basic Info
Model NO.
U1-01-233 / U1-02-230
Cycle Life
8000 times
Nominal Capacity
768/832V / 215/233 Kwh
Battery Type
LiFePO4
Certification
ISO9001:2000
Protection Grade
IP55
Structure
All in One / All-Packaged
Rated Voltage
380 V
Specification
1000*1400*2170 mm
Application
Power Plants
Product Parameters

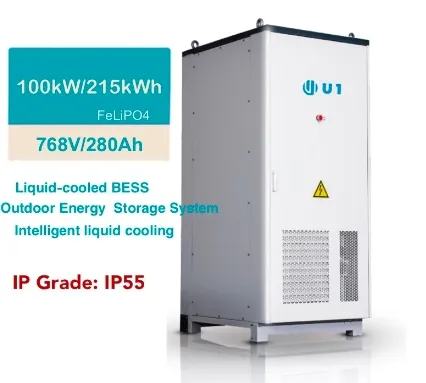

Energy Storage System Parameters
  • Nominal capacity: 215kWh
  • Battery cell: 280Ah (LiFePO4)
  • Nominal output: AC380V
  • Rated power: 100kW
  • Cycle life: 8000 times
  • Cooling method: Liquid Cooling
  • Protection: IP55
  • Conversion rate: ≥90%
  • Operating Temp: -30~50ºC

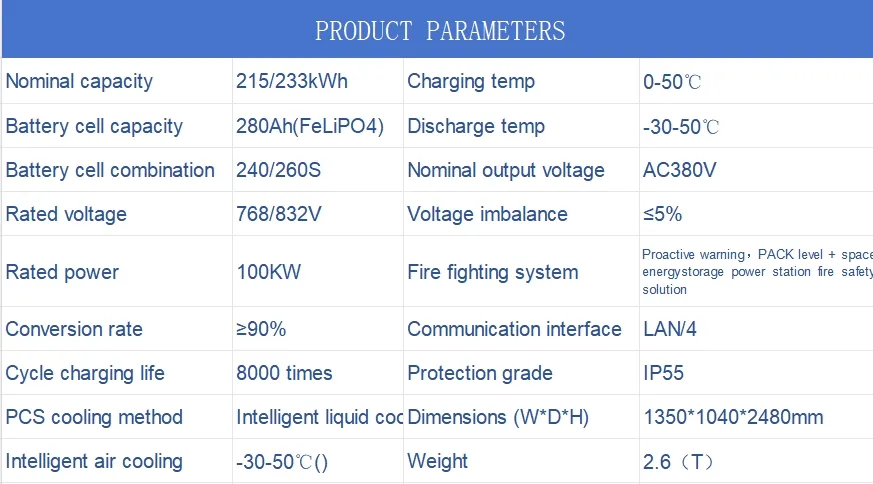

System Overview
Detailed Photos
Detail View 1
Detail View 2

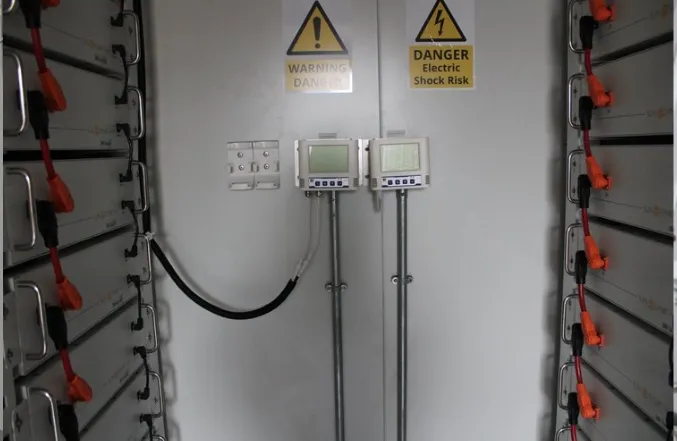

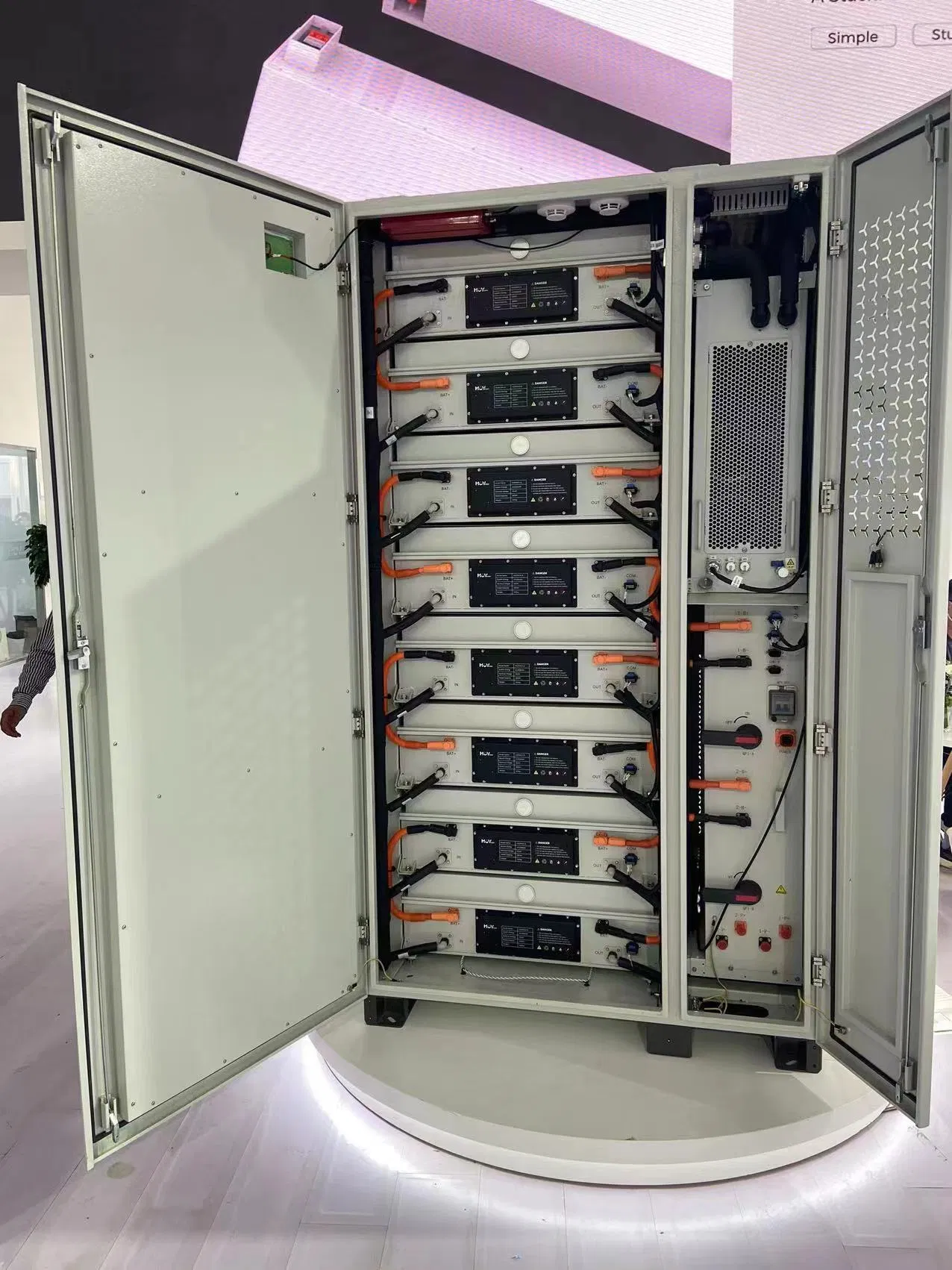

Internal Structure
Liquid Cooling System

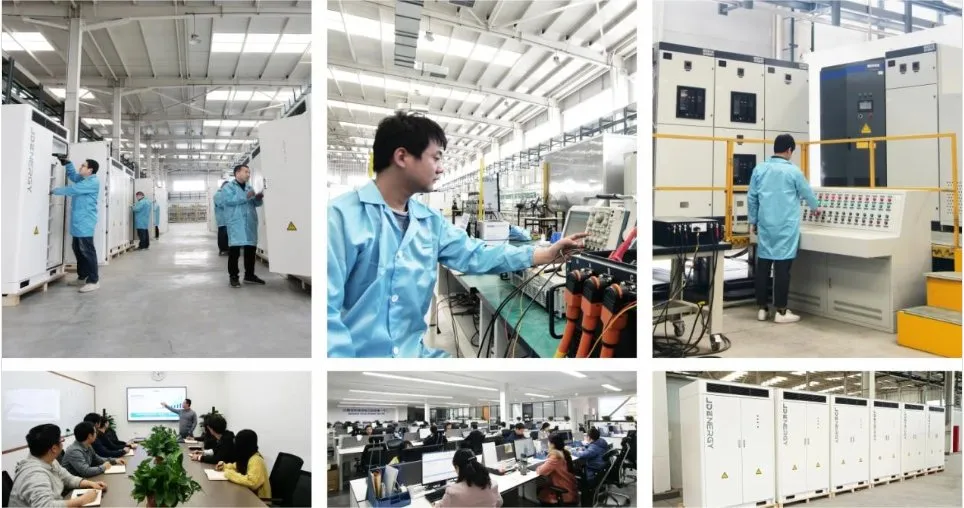

Assembly View
Certifications

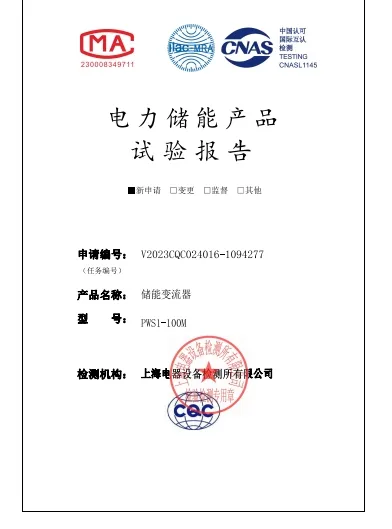

Cert 1

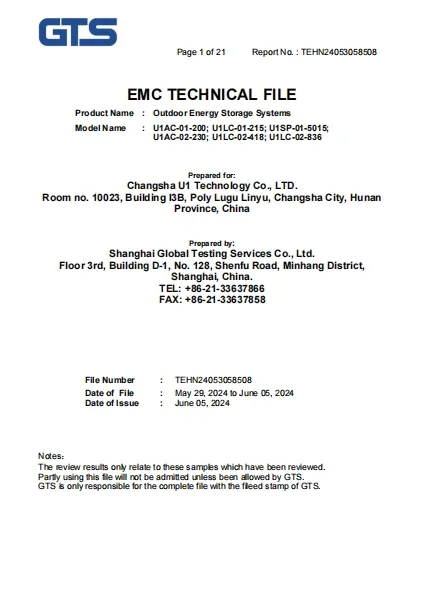

Cert 2

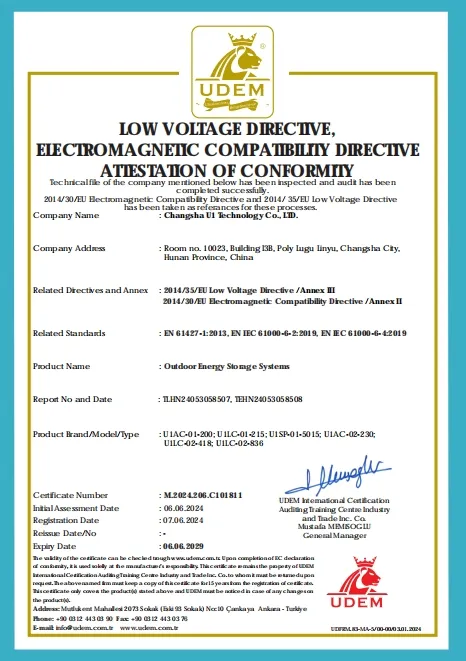

Cert 3

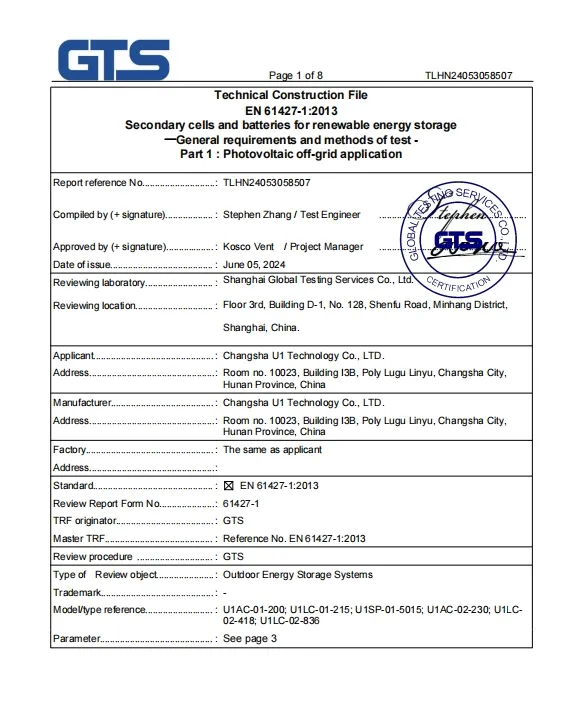

Cert 4
Cert 5
Frequently Asked Questions
What is the cycle life of the LiFePO4 battery?
The system provides an industry-leading cycle life of up to 8000 times, ensuring long-term reliability for power plants.
What cooling method is used for the PCS?
It utilizes an advanced liquid cooling method to maintain optimal operating temperatures and enhance efficiency.
What is the protection grade of the shell?
The unit is rated at IP55, providing robust protection against dust and low-pressure water jets for outdoor applications.
Does the system include fire safety features?
Yes, it includes a proactive warning fire fighting system with PACK level and space energy storage fire safety solutions.
What are the main application ranges?
This energy storage solution is primarily designed for power plants and industrial energy storage needs.
What is the energy conversion rate?
The system achieves a high conversion efficiency rate of ≥90%.
