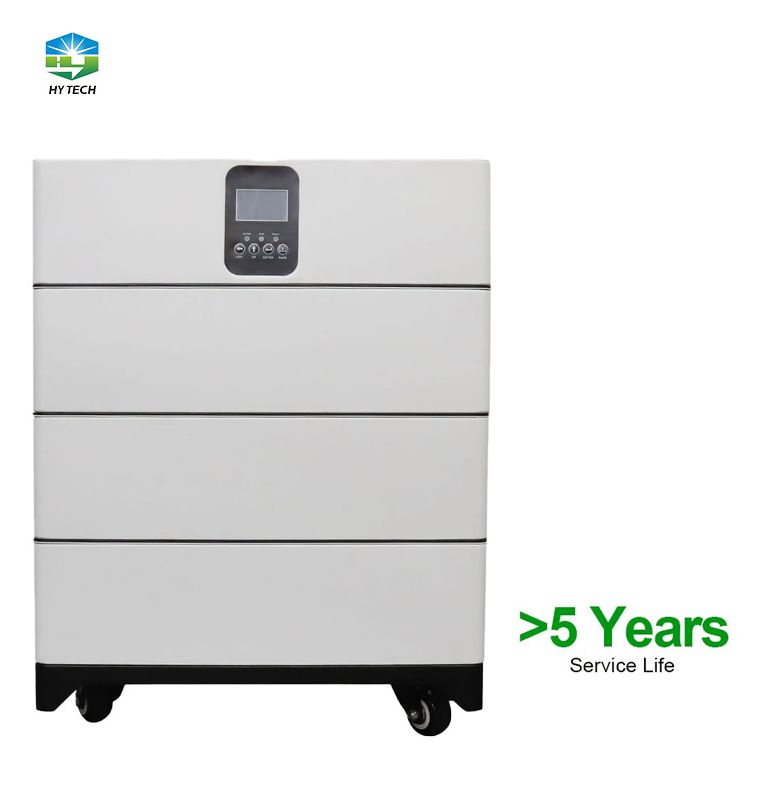

Innovative Eco-Friendly Energy Storage Solutions for Lasting Sustainability

Customization:	Available
Weight:	50kg
Warranty:	5years

📊 Basic Information

Model NO.

DHDJ-5000

Cycle Life

6000 Times

Nominal Capacity

5kwh-60kwh

Material

LiFePO4

Battery Cell

Grade a+

Voltage

51.2V

BMS

Yes Included

HS Code

8507600090

💡 Product Description

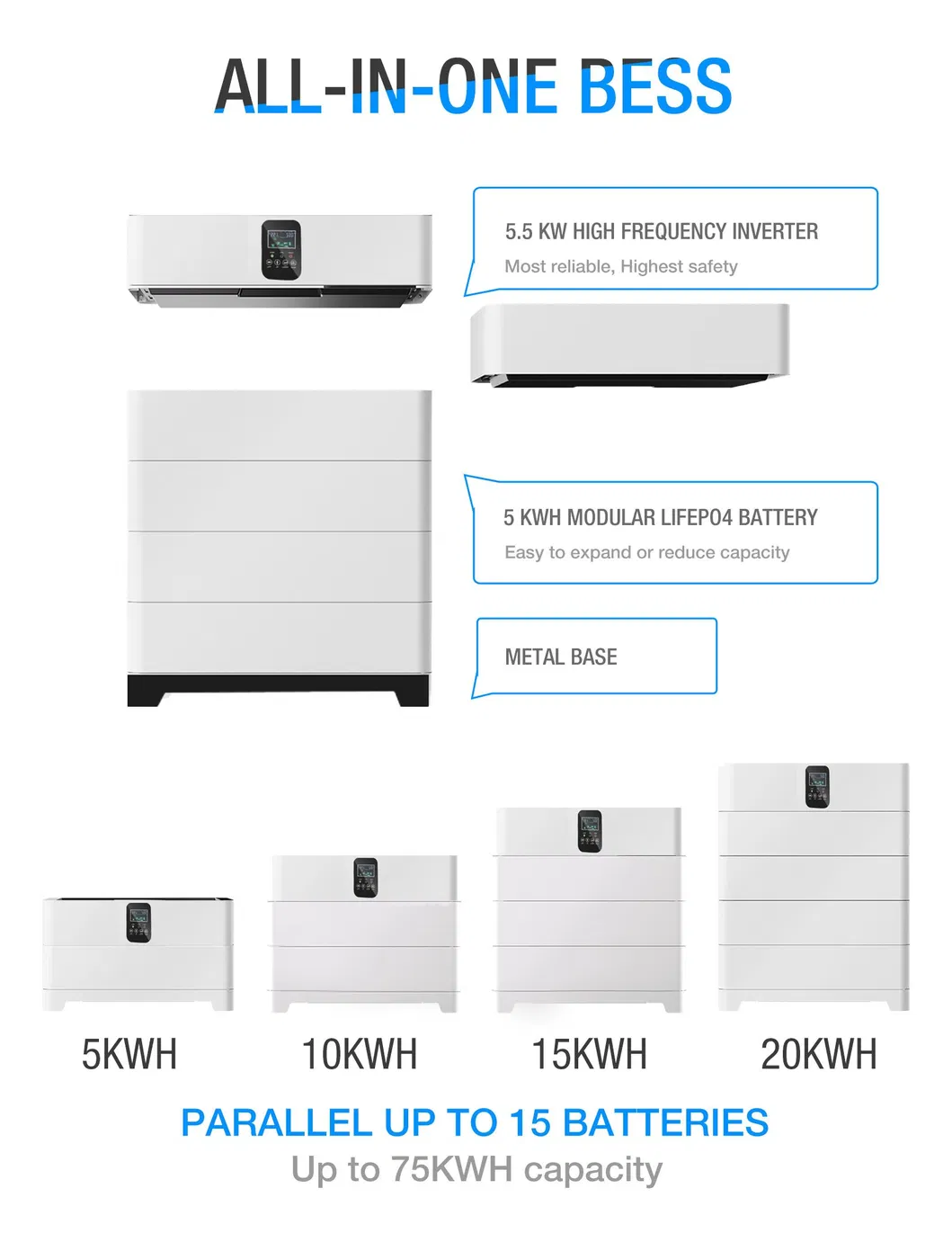

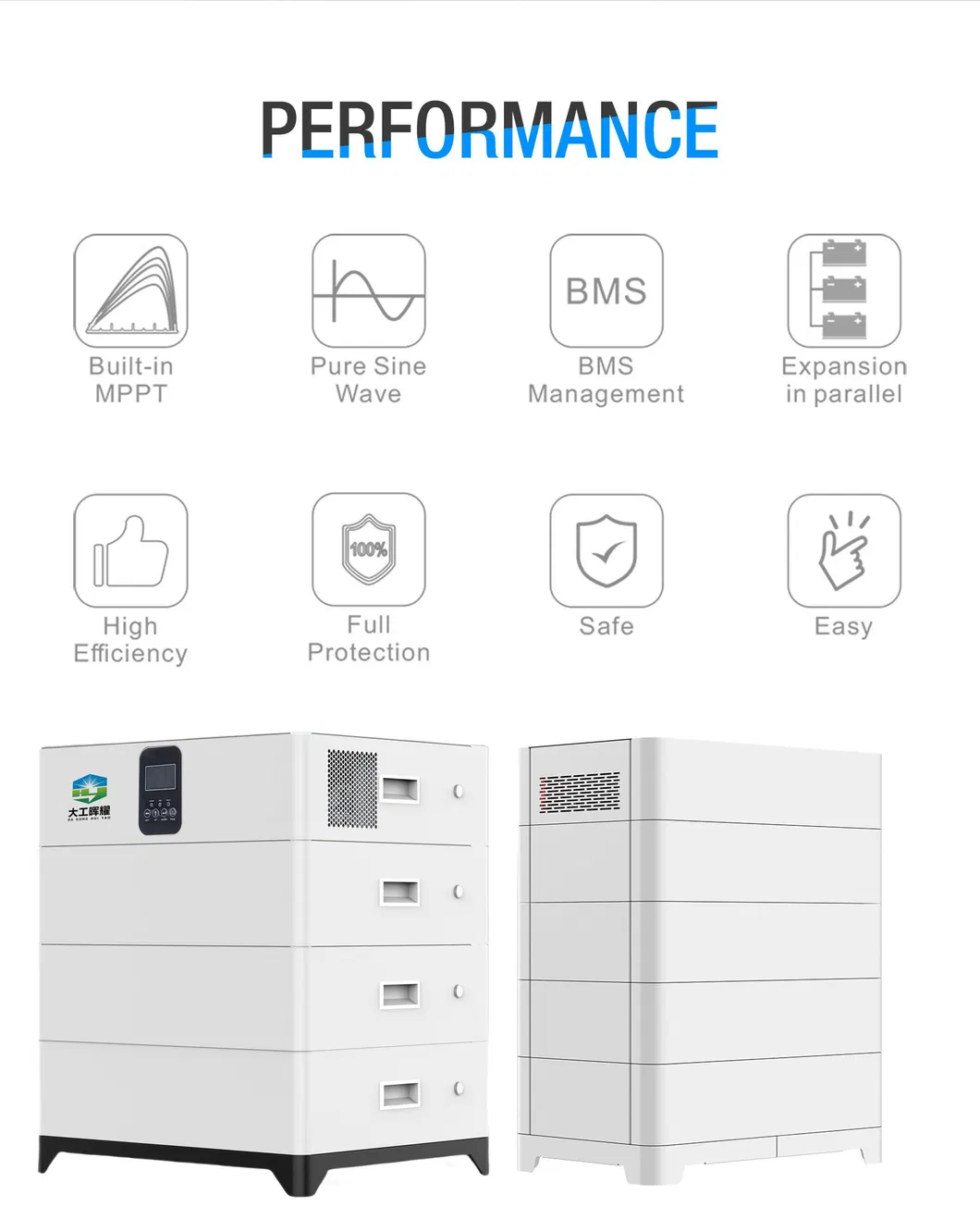

Battery Module Stacking Design

Design a smart Battery Management System (BMS) to monitor the voltage, temperature, and current of the battery pack in real-time, ensuring safe and stable operation. Use a modular design to allow users to flexibly adjust battery capacity based on household energy needs.

All-in-One Design

Optimize the integration of the inverter, battery, and BMS to improve space utilization and aesthetics. Employ a compact inverter and efficient cooling solutions to ensure stable operation under high loads.

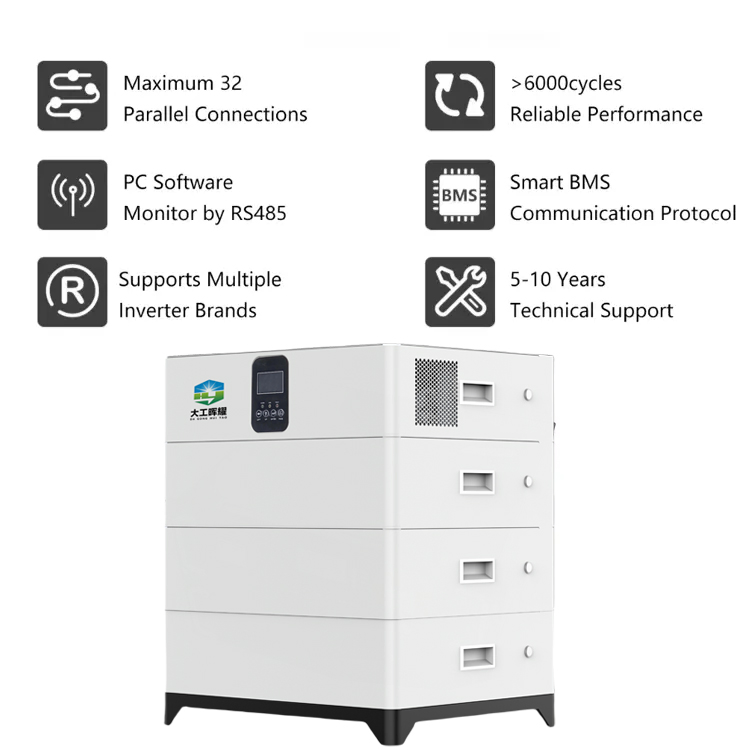

Communication Interface

Using CAN bus or RS485 to enhance anti-interference capabilities, suitable for complex electromagnetic environments. Support multiple communication protocols for software upgrades.

⚙️ Product Parameters

Battery Model	Voltage	Energy	Capacity	Size	Current	Material
DHDJ-5000*1	51.2V	5.12kWh	100Ah	602532215mm	100A	LiFePO4
DHDJ-5000*2	51.2V	10.24kWh	200Ah	602532430mm	100A	LiFePO4
DHDJ-5000*3	51.2V	15.36kWh	300Ah	602532645mm	100A	LiFePO4

📜 Certifications

ISO 9001, CE, UN38.3, MSDS Certified

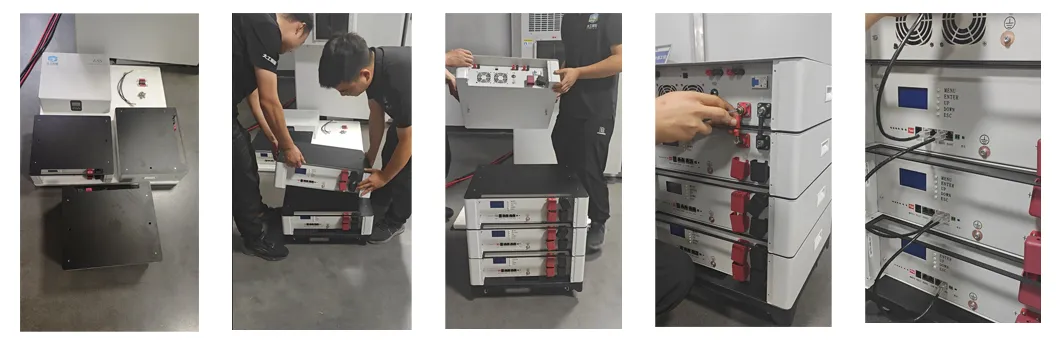

🛠️ Installation Instructions

1. Unboxing: Open packaging and remove battery units carefully.

2. Stacking: Follow the stacking sequence as per modular design.

3. Parallel Connection: Secure connections for stable power output.

4. Communication: Connect cables to the management system (BMS).

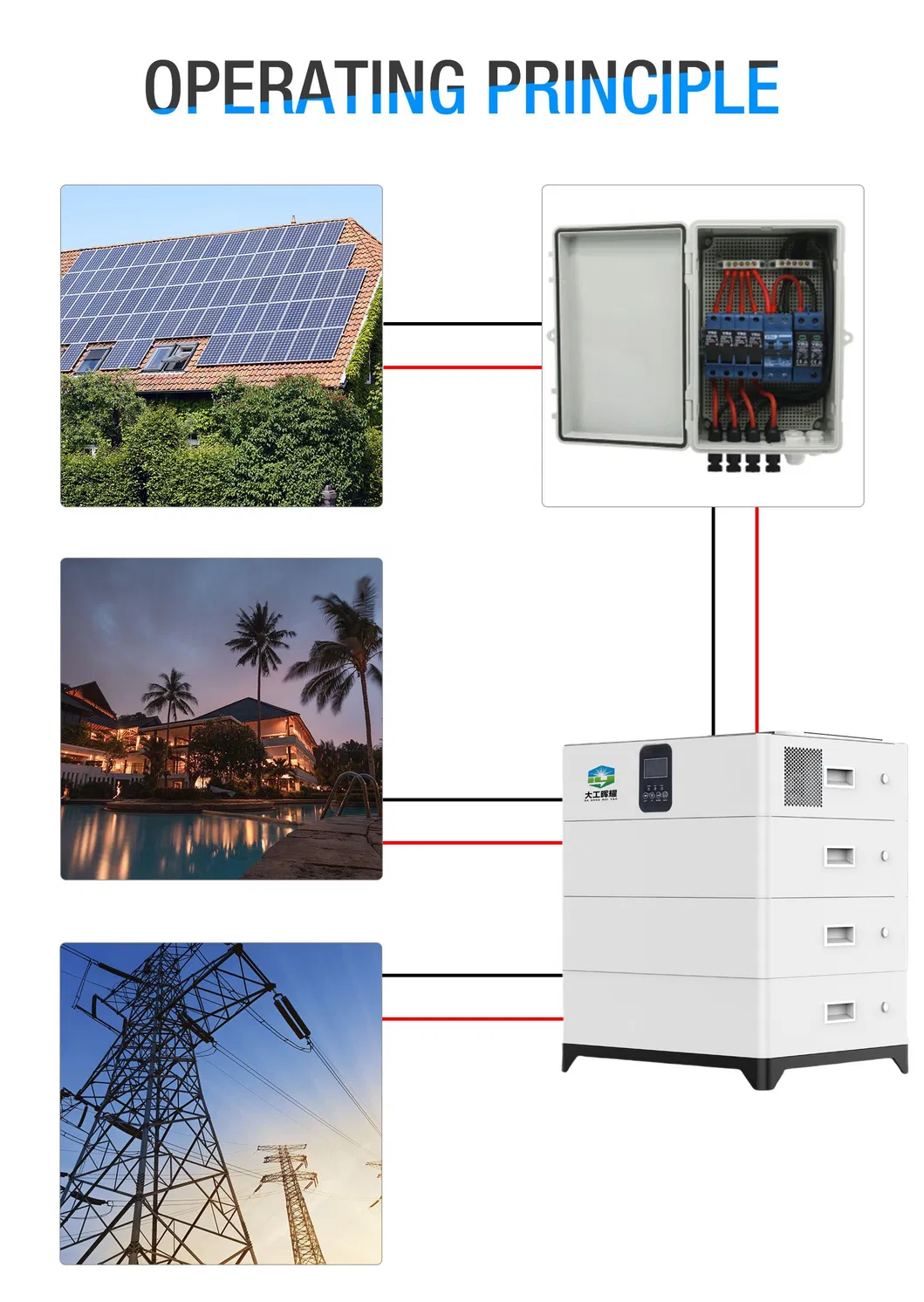

5. Power On: Connect to PV and grid systems.

🚢 Packaging & Shipping

Our battery products are packaged using specialized, customs-approved hazardous packaging boxes. We hold safety transportation certification for both land and sea transport, complying with UN38.3 standards.

❓ Frequently Asked Questions

Q1: Does the system require technical adjustment during first start?

A: No, it is pre-set at the factory. The system will automatically adapt to standard operations.

Q2: How often is maintenance required?

A: Parameters are preset. You can monitor status via the LCD screen or mobile APP via WiFi module. No manual component changes are needed under normal use.

Q3: How to calculate solar system needs?

A: For 4000kWh/year, it's ~10.9kWh/day. For 2000kWh/year, it's ~5.4kWh/day. Battery capacity should be chosen based on these daily consumption values.

Q4: What are the core product offerings?

A: We specialize in solar energy systems and components, primarily high-efficiency inverters and Lithium batteries.

Q5: What is the after-sales policy?

A: During the warranty period, defects in the product itself result in free replacement. Post-warranty, replacements are offered at a 20% discount.

Q6: How long is a price quote valid?

A: Standard price quotations are valid for 15 days.
